Fryma Koruma Delmix MZM/VK-150 M16819

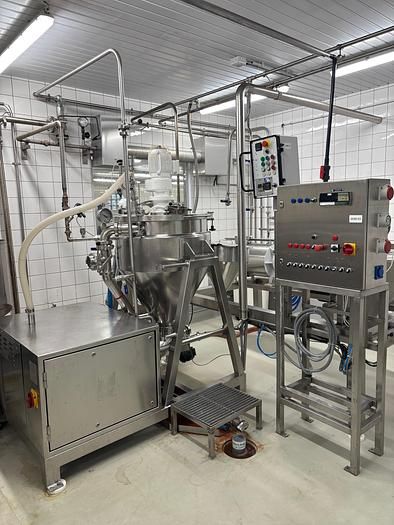

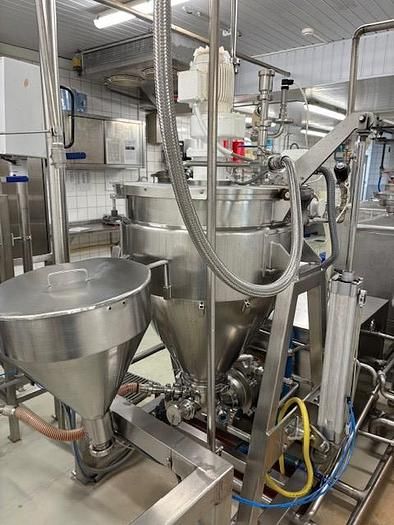

Fryma Koruma Delmix MZM/VK-150 Vacuum mixing system

Products with different viscosities can be dissolved, mixed, dispersed, and emulsified.

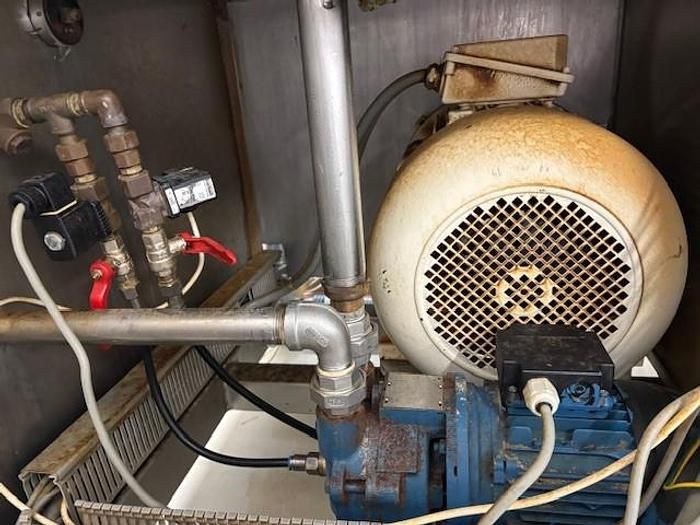

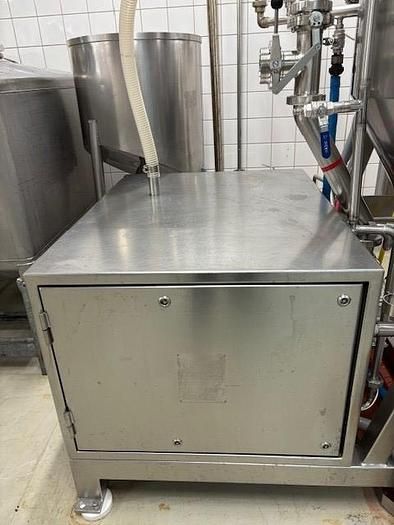

At the start of the process, the vacuum pump is switched on and evacuates the process vessel.

Liquids and dry products are fed into the homogenizer's mixing chamber under vacuum via the product inlets.

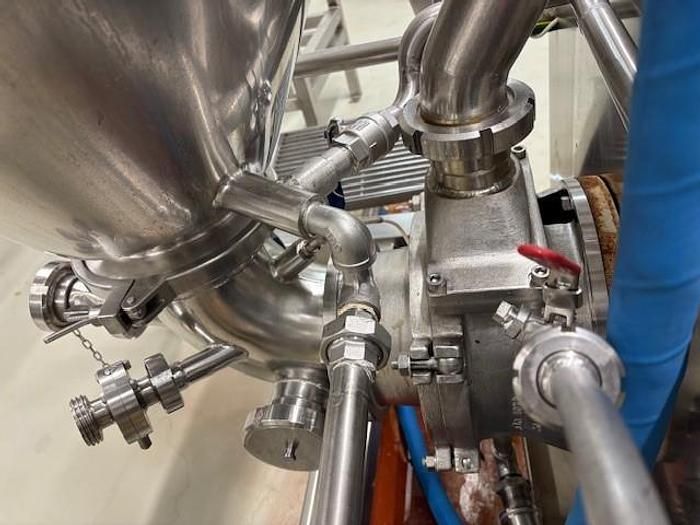

The homogenizer is the heart of the process system.

The high-speed homogenizer and stator system disperses
and homogenizes the liquid and medium-viscosity products.

The pumping action of the homogenizer conveys the product into the vessel via the circulation line.

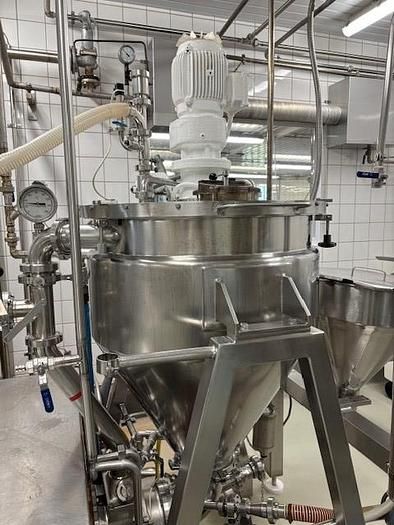

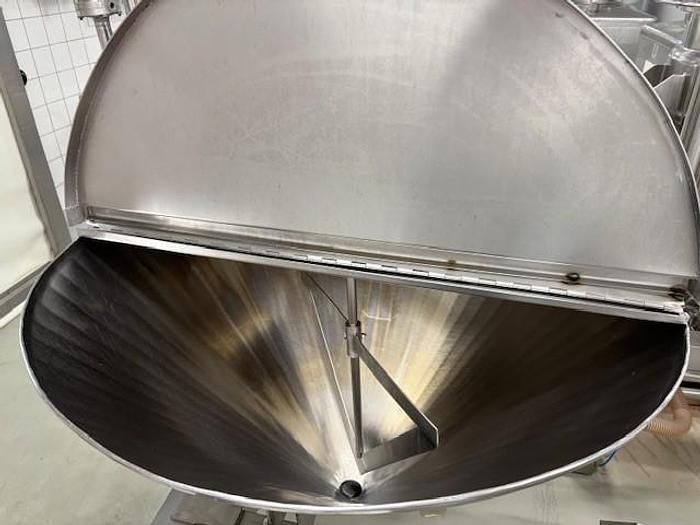

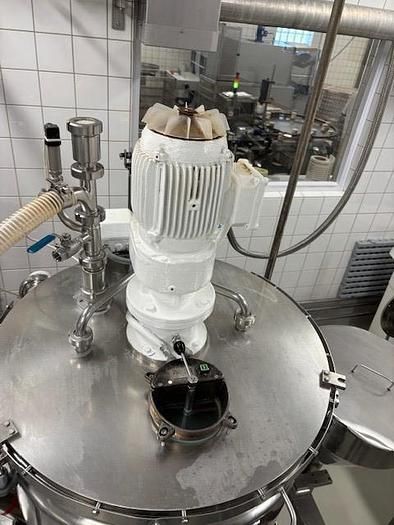

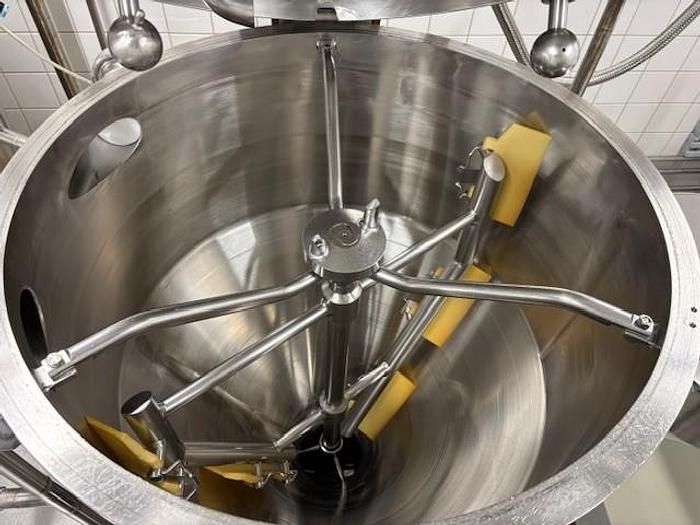

A slow-speed scraper agitator with flexible scrapers rotates inside the vessel.

The scraper agitator is responsible for circulating and mixing the product.

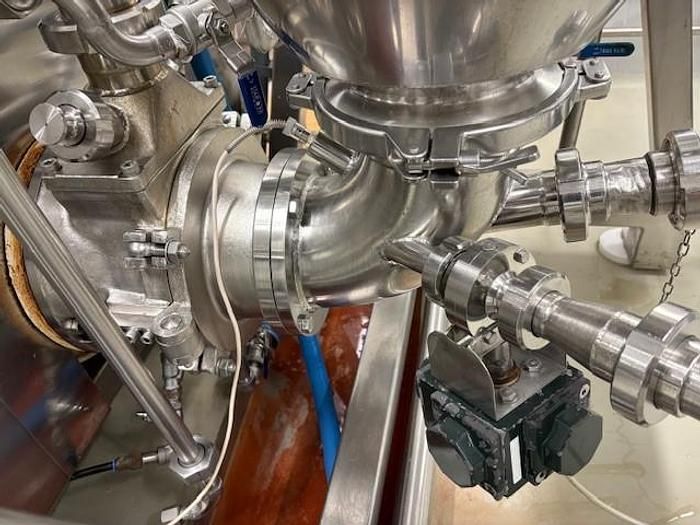

The scraper blades move across the inner surface of the vessel wall. This prevents the product from sticking to the wall and improves heat exchange. The product returns to the homogenizer via the conical vessel outlet. During this process, the vacuum pump evacuates the vessel and continuously deaerates the product.

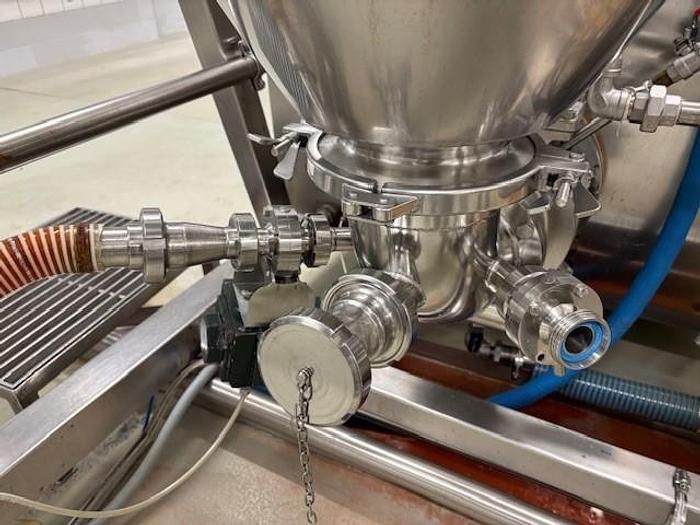

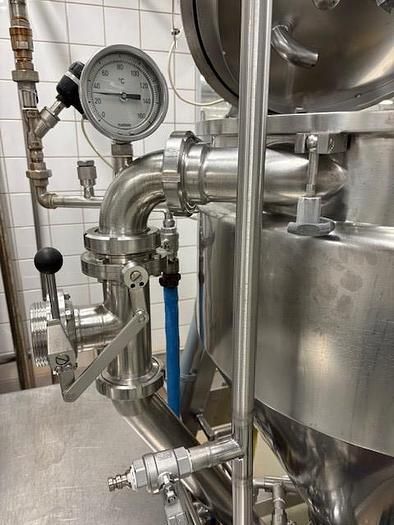

The final product is discharged into the circulation line via the 3-way valve.
