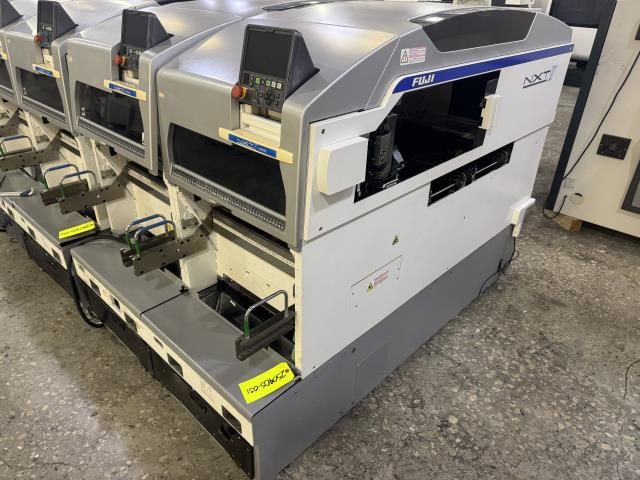

Fuji NXT II

• Exchangeable placement head
• Supports high-speed chip mounting and odd-form component placement
• Maximum PCB size: 534 × 610 mm
• Automatic rail width adjustment
• Optional automatic tooling pin-support system
• Intelligent feeders with ID function
• Feeder capacity (M3II): Up to 20 types (8 mm tape)
• Feeder capacity (M6II): Up to 45 types (8 mm tape)
• PCB load time (double conveyor): Continuous, 0 sec
• PCB load time (single conveyor): 2.5 sec
• PCB load time (M3II single conveyor): 3.4 sec
• Placing accuracy (chips): ±0.05 mm (3 sigma)
• Placing accuracy (four-side leaded): 0.03 mm (3 sigma)
• Throughput (H12HS): 22,500 CPH
• Throughput (H08): 10,500 CPH
• Throughput (H04): 6,500 CPH
• Throughput (H02): 5,600 CPH
• Throughput (H01): 4,200 CPH
• Applicable components H12HS: 0402 (01005) to 7.5 × 7.5 mm, max height 3.0 mm
• Applicable components H08: 0402 (01005) to 12 × 12 mm, max height 6.5 mm
• Applicable components H04: 1608 (0603) to 38 × 38 mm, max height 9.5 mm
• Applicable components H02/H01: 1608 (0603) to 74 × 74 mm (32 × 180 mm), max height 25.4 mm
• Module width (M3II): 320 mm
• Module width (M6II): 645 mm
