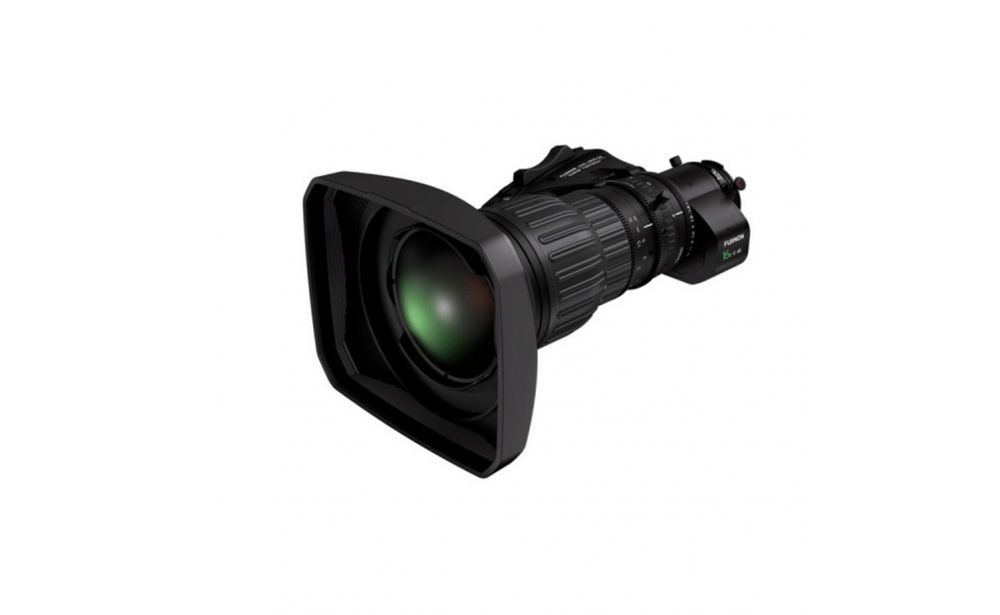

Fujinon UA16x4BERD

Portable 4K 2/3" Lens – Zoom 16x and 4-64mm
Zoom ratio: 16x
Native focal length (1x): 4 mm to 64 mm
Focal length with extender (2x): 8 mm to 128 mm
Maximum aperture (F-Stop): F1.8 (4 mm to 40 mm) and F2.9 at 64 mm
Minimum object distance (M.O.D.): 0.3 meters
Image circle: optimized for 2/3 inches standard sensors

Control and Motorization

Drive unit type: BERD version with motorized mechanical extender and digital servo-control
Position sensors: 16-bit digital encoders for servo and virtual studio tracking protocols
Control compatibility: full-servo studio kits and digital zoom demand modules

Field Functions and Macro

Object dimensions at M.O.D. (1x): 837 x 453 mm at 4 mm and 48 x 28 mm at 64 mm
Object dimensions at M.O.D. (2x): 412 x 225 mm at 8 mm and 25 x 14 mm at 128 mm
Filter thread: M127x0.75 (on lens hood)

Physical Specifications
Mount type: B4 broadcast bayonet mount
Net weight: 2.29 kg (excluding lens hood)
Dimensions: 95 mm diameter by 252.6 mm length
