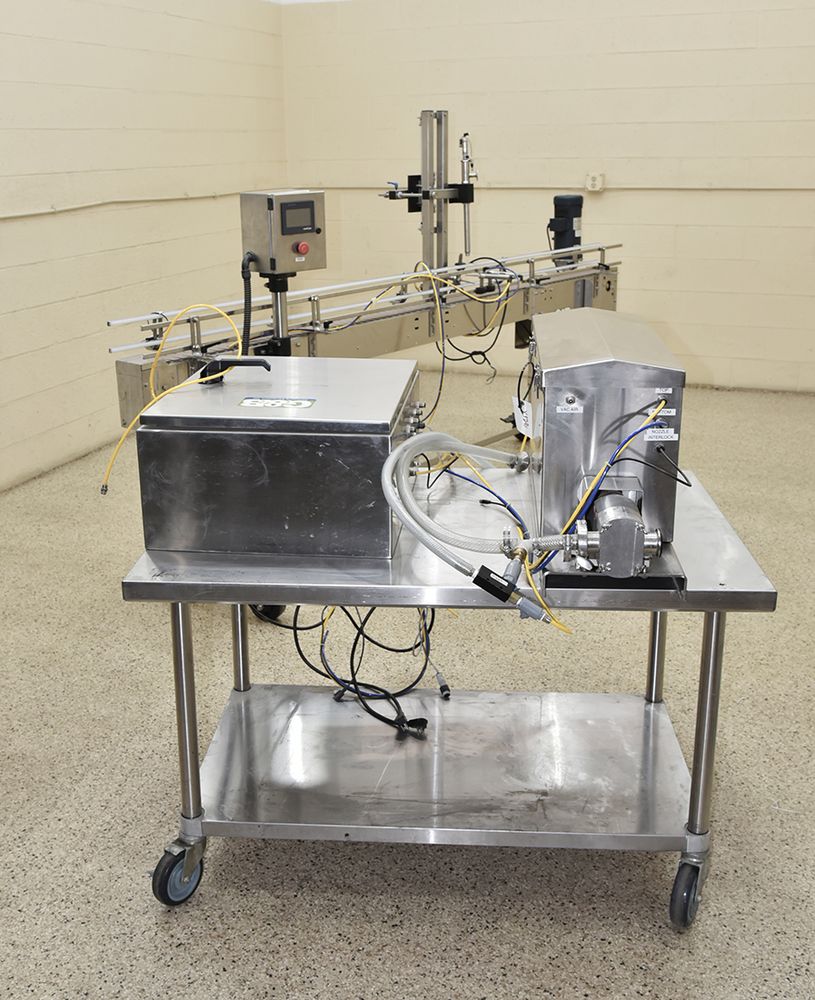

G & B Aurora Elite, Inline Automatic Filler
AMERICA North (USA-Canada-Mexico)
FEATURES:
10 foot long tabletop chain CONVEYOR with 4.25 inch wide flat top conveyor chain, and adjustable guide rails suitable for containers up to 6.5 inch diameter.
The pump head is a Uniblock GP275 gear pump with high density poly gears, 316L stainless steel product contact surfaces, and 1.5 inch Tri-Clamp inlet and outlet connections.
Configured with 5/8 inch (ID) non-drip fill nozzle (other fill nozzles available from manufacturer).
Pneumatic operated container indexing system for automatic operation.
No-container-no-fill sensor.
Manufacturer rated for 1 ounce to 3 gallons with +/- .5% accuracy or better.
Color touch-screen display operator control.
Stainless steel electrical and control boxes, with PLC controller, and capable of multiple product presets.
All food grade sanitary stainless steel product contact surfaces and construction.
The pump is powered by a 1 HP drive and entire system is mounted on a portable stainless steel table.
110 volt single phase electrical input (standard household current).
Requires compressed air, 90psi, 3cfm pneumatic.
