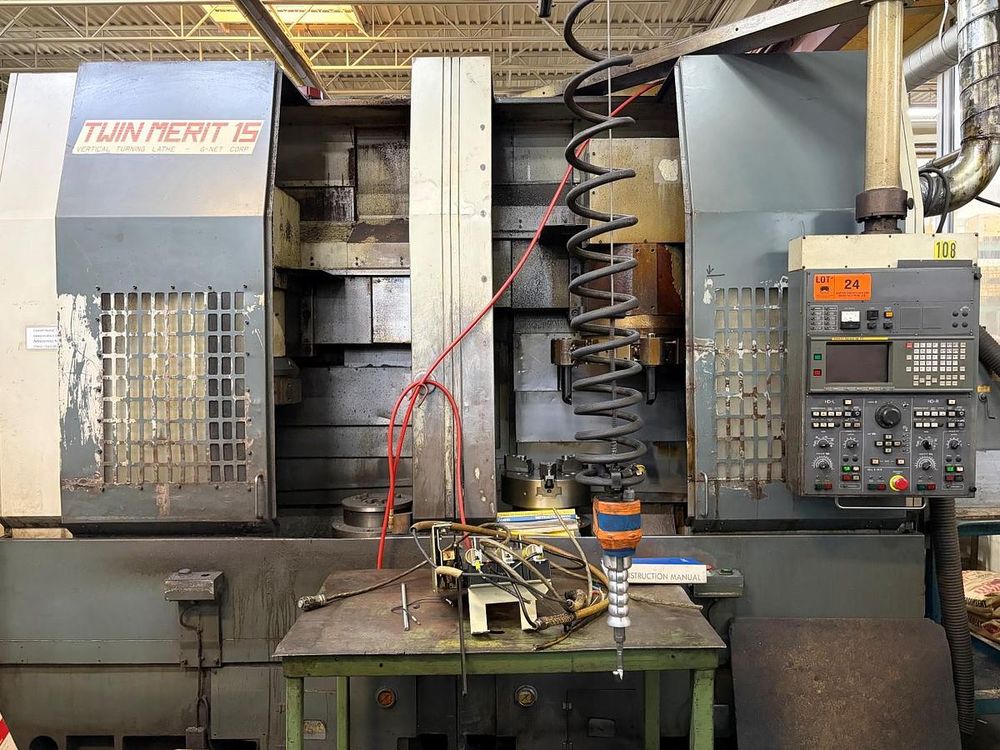

G-NET TWIN MERIT 15 Swing over bed: 558.8 mm

Ref : 2798887-3-GO

Condition : Used

Manufacturer : -

Model : G-NET TWIN MERIT 15

Short Description : Swing over bed: 558.8 mm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X axis travel: 305 mm
Z axis travel: 610 mm
Rapid traverse X axis: 630 ipm
Rapid traverse Z axis: 630 ipm
Control: Fanuc Series 18-TT
Power chuck size: 304.8 mm
Optional chuck size: 381 mm
Maximum turning diameter: 304.8 mm
Optional maximum turning diameter: 381 mm
Maximum turning length: 571.5 mm
Optional maximum turning length: 546.1 mm
Spindle through hole: 75.4 mm
Spindle speed range: 25 - 2500 rpm
Spindle motor power: 30 kW
Turret stations: 12
OD tool shank size: 25.4 - 31.75 mm
ID tool hole size: 38.1 - 50.8 mm
Indexing time: 0.8 sec/position

Twin spindle configuration
Twin 12-station turrets
Hydraulic system
Coolant system
Twin chip conveyors
