Gabler M92L
Ref :
2727772-6-MT
Condition :
Used
Manufacturer :
Gabler
Model :
M92L
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

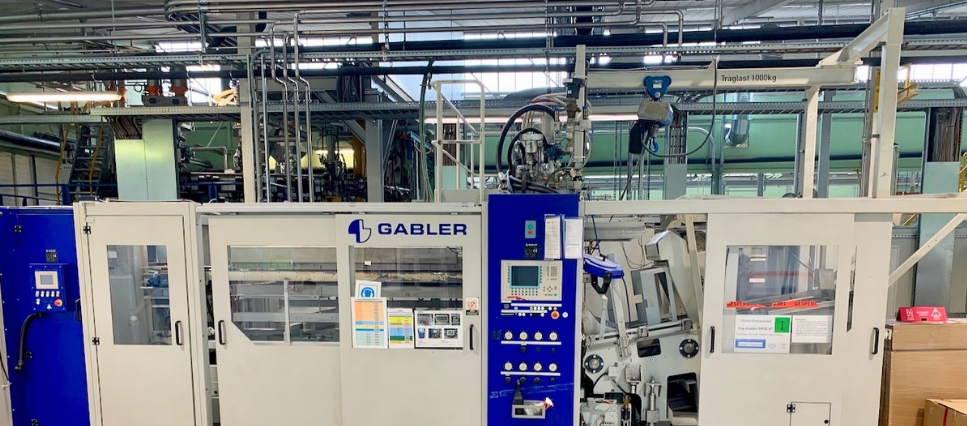

Thermoforming machine with:
Pre-heater
Stacking unit
– Forming area 750 x 436 mm
– Film width for PP 410…804 mm
– Film width for PS 410…814 mm
– Drawing depth negative 150 mm (standard) 200 mm (optional)
– Power upper heating 81,90 kW
– Power bottom heating 54,60 kW
– Mains voltage 400V AC
– Frequency 50 Hz
– Voltage for consumer 230 V AC 24 V DC
– Control voltage 24 V DC
– Total connected load approx. 138.66 kW
– Punching force max. 350 KN
-load cycles 44 cycles/minute
