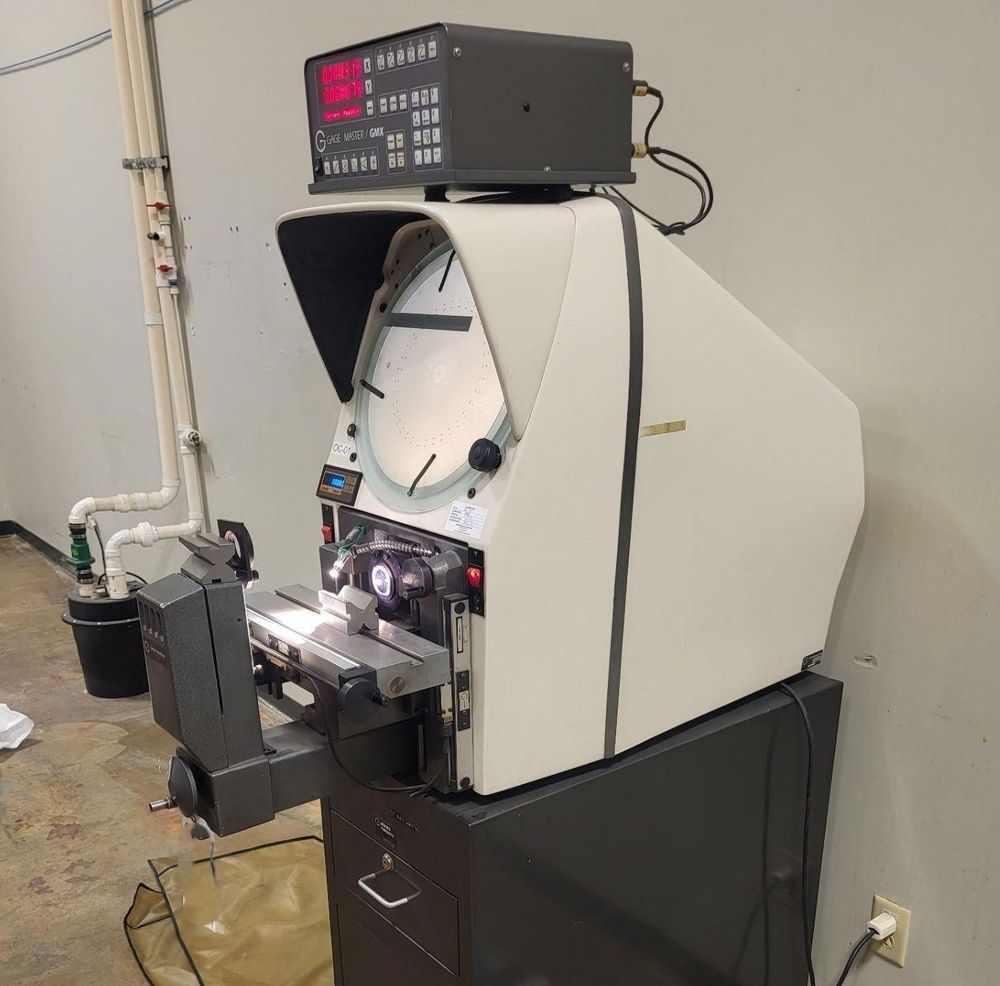

Gagemaster 29/GMX

Screen size overall 14.75 in
Screen viewing area 13.25 in
Table size 4 x 14.75 in
Horizontal table travel 7 in
Vertical table travel 4 in
Focus adjustment 1.5 in
Angle measurement 360° chart rotation
Throat clearance 8 in
Electrical requirements 110–120 V 1 Ph 60 Hz
Machine width 20 in
Machine depth 48 in
Machine height 36 in
Net weight approx. 150 lb
Estimated shipping weight approx. 400 lb
GMX computational digital readout
Internal edge sensing
Electronic digital angle display
Rapid X axis table positioning
Single lens mount
10x lens
Fiber optic surface illumination
Tungsten halogen projection
Screen mounted chart clips
Cabinet base
