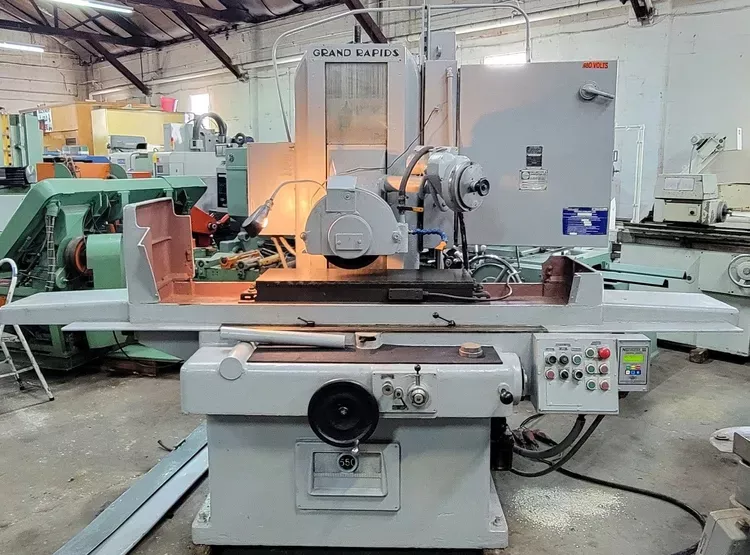

Gallmeyer & Livingston NO. 550

GALLMEYER & LIVINGSTON NO. 550
1980

Table Width: 12"
Table Length: 36"
Grinding Orientation: Horizontal
Spindle Motor Power: 7.5 hp
Grinding Wheel Width: 1"
Grinding Wheel Diameter: 14"
Electromagnetic Chuck: 12" x 36"
Magnetic Controller: Newer Neutrofier
Axes: 3-axis automatic
Elevation Handle on Column
Automatic Lubrication Pump
Automatic Down Feed
Rapid Up & Down
Coolant System
Table Size: 14" x 36"
Longitudinal Travel (X): 38"
Cross Travel (Y): 13.5"
Vertical Travel (Z): 17"
Chuck Height: 3"
Spindle Center to Top of Chuck: 25"
Grinding Wheel Size: 1" x 14" x 5"
Motor Voltage: 7.5 hp
Shipping Dimensions (Front to Back): 5'8"
Shipping Width: 10'2"
Shipping Height: 7'6"
Power Requirement: 440 Volt, 3 Phase
Paper Filter with Magnetic Separator available at additional cost
