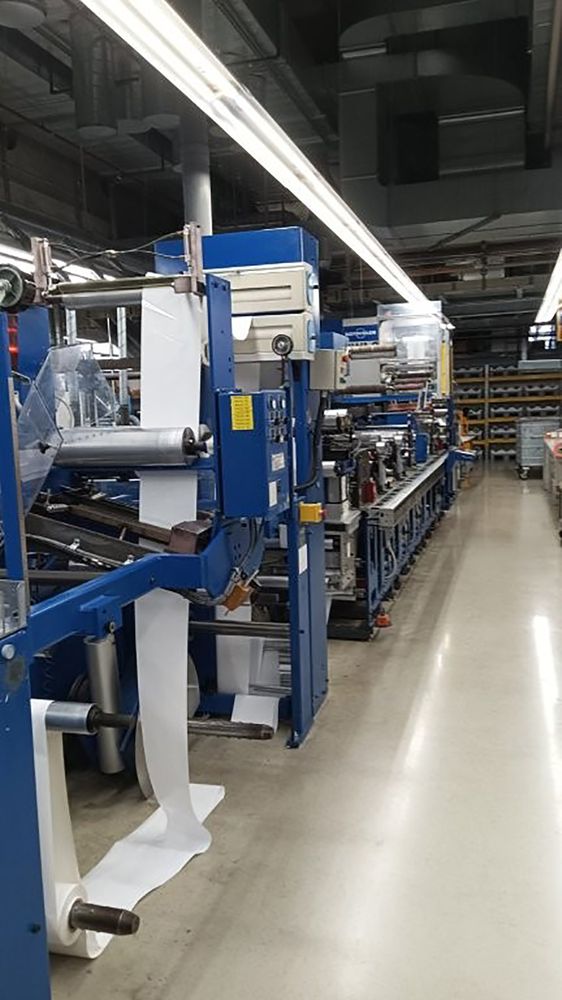

Arsoma, Gallus EM 410 (FLEXO/SCREEN) 3 407 mm

Printing technologies installed:
• 3 x Flexographic printing units
• 3 x Screen printing units
• Gravure capability (cylinder formats available)
Maximum mechanical speed: 150 m/min
Maximum web width: 417 mm
Minimum web width: 166 mm
Maximum print width: 407 mm
Substrate thickness range: approx. 0.008 – 0.18 mm
Repeat rangesFlexo: (228.6 mm (Z72) up to 609.6 mm (Z192)
Screen: 269.875 mm (Z85) up to 533.4 mm (Z168)
Gravure: 304.8 mm (Z96) up to 609.6 mm (Z192)
Die Cutting Section

Flat die cutting:
Die cutting width: 407 mm
Repeat: 254 mm (Z80) up to 609.6 mm (Z192)
Rotary die cutting capability installed.
Unwind / Rewind Section

Unwinder:
• Martin endless unwinder
• Core diameters: 76 / 152 mm
• Maximum unwind diameter: 1000 mm
• Maximum roll weight: approx. 485 kg
Rewinder system installed.

Electrical Data:
Nominal current: 500 A
Connected load: 275 kW
General Condition :
The machine is designed for web label production and represents a solid hybrid combination press with flexo and screen capability.
