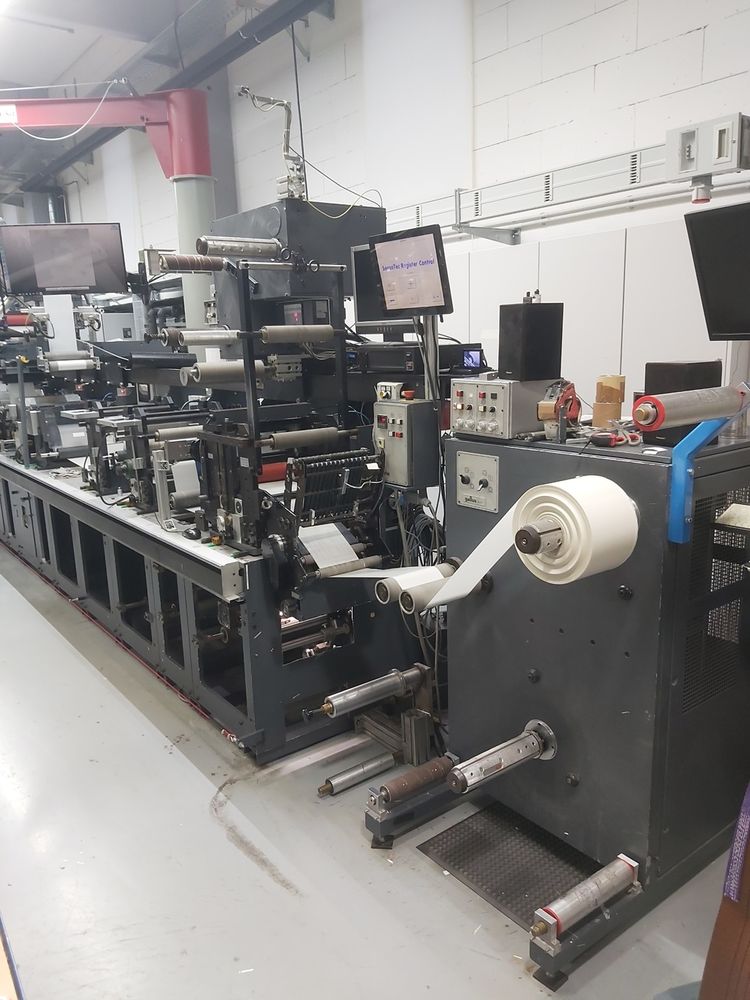

Gallus EM 260 8 250 mm

• Max. Printing Width: 250 mm
• Retrofit of the complete machine control system: 2016
• Printing Units: 8 (dual-drive technology)
• Application: Production of self-adhesive labels

Printing Equipment:
• 8 × Flexographic print stations
• Print cylinders (1/8") – 8 pcs each:z=88, 92, 96, 100, 108, 116, 120, 124, 132
• Additional impression cylinders for thin & thick materials
• 46 Anilox rollers for all applications
• 4 × Sleeve systems z=88 for varnishing (incl. mounting station)
• 4 × Fully equipped chamber-doctor systems with peristaltic pumps
• Screen printing unit

Die-Cutting & Converting:
• 3 × Die-cutting stations
• 2 × Die-cutting units equipped with adjustable counter-pressure cylinders(Spilker Variabase system)
• Magnetic cylinders (min. 3 pcs each, 1/8"):z=88, 92, 96, 100, 108, 116, 120, 124, 132
• Rewinding & waste removal systems:o 3 × Matrix rewinders on rail systemo Additional matrix rewindero Double spindle rewinder (roll-to-roll)
• Laminating unit on rail system
• Insetter register system for pre-printed webs
• BG 74 insert rewinder

Drying & Treatment:
• 8 × UV curing units from Uviterno (240 W/cm)incl. spare lamps and accessories
• Corona treater 1 kW• Cooling and air extraction integrated

Web Guiding & Control:
• E+L Web guiding systemo 2 × ultrasonic sensorso 1 × line sensor
• BST video inspection system
• Register control for 10 stations (Sensotec)
• Web cleaning system Teknek
• Anti-stick roller equipment
• Draw unit between printing & converting section
• 2 × Nip rollers

Additional Equipment:
• Outfeed conveyor for single labels
• Workbench with shelving and drawer systems for tools, anilox rollers, magnetic cylinders
• Diverse spare parts and accessories
• Color tray inserts
• 16 blade holders

CONDITION:
• Machine is in very good used condition
• Fully operational at time of decommissioning
• Retrofit in 2016 significantly modernized machine control________________________________________
