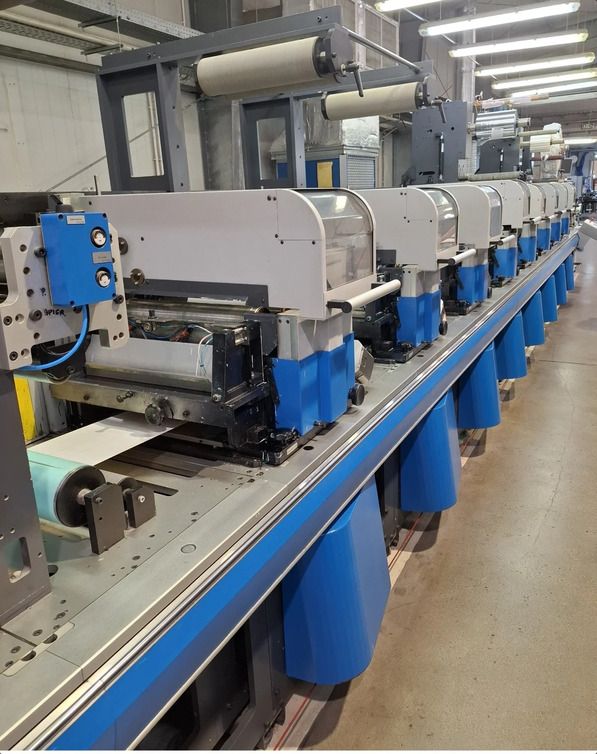

Gallus EM 430-8S 8 660 mm

Max. Web width:: 435 mm
Min. web width: 215 mm
Max.Print width: 660 mm
Min. print width: 304 mm
Max mechanical Speed: 150 m/min.
Adhesive-side printing (Delam/Relam) capability on two printing stations
CS/Multiweb lamination unit
The ability to replace one flexographic section with a screen printing unit
Full Cylinder hot stamping unit
Corona system
Teknek web cleaning system
Sensotec automatic register control
BST Powerscope video inspection system
GapMaster die-cutting unit
Matrix rewinder
UV IST systemInserting - web insertion capability
Unwinding unit (BG 01) Unwinding unit with pneumatic elevator
Web slitting table with pneumatic pressure
Dancer system Electric edge guidance with ultrasonic sensor
Optical web end sensor 3" pneumatic mandrel
Plywood sensor Web break sensor
Infeed section (BG 02) "Infeed" feeding unit mounted on a 610 mm platform Voltage adjustment from 50–1000 N
Corona system (BG 57) Corona system 5–10 kV 4 electrodes
Web cleaning system (BG 58) TEKNEK system Cleaning of both sides Webs
