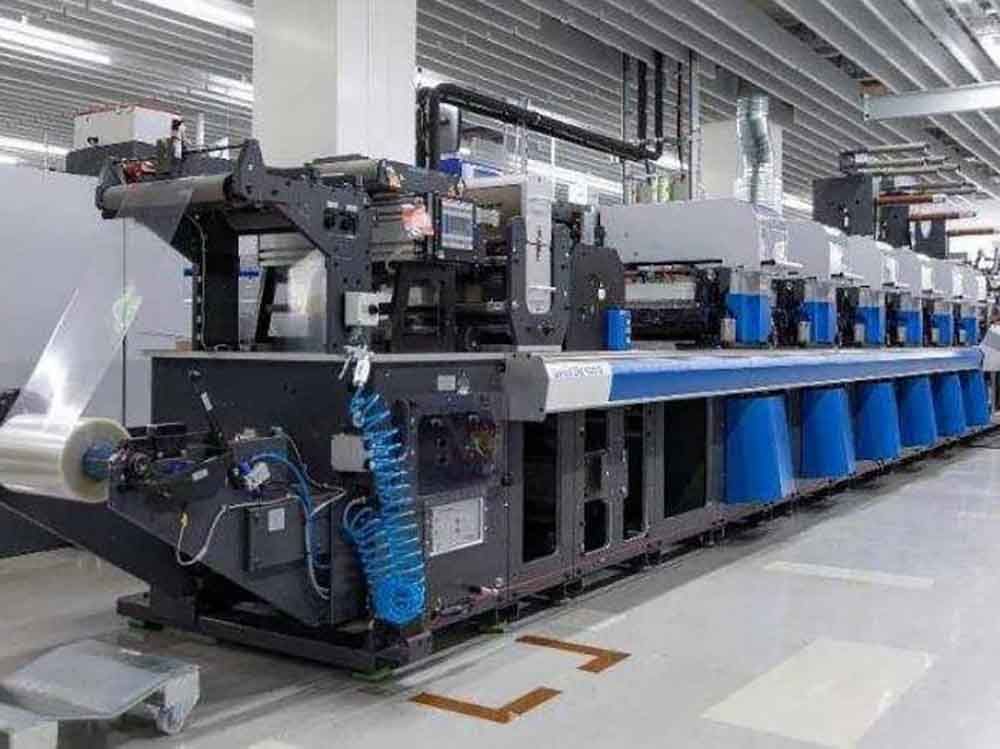

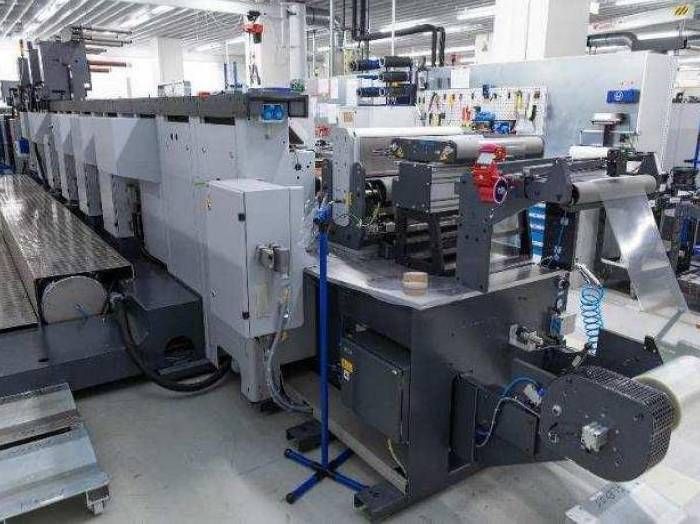

Gallus EM 430 S

6 colors)
The machine has been in operation for 11 months.
- Machine speed: 1 – 150 m/min (max. < depending on the product)
- Electrical power including UV: approx. 80 kW at 60 m/min (20 kW standby)
- Material thickness: 36 μm to max. 450 μm, width: 215 – 425 mm
- Unwinding and rewinding (rewinding with two winding spindles, left and right-hand rotation) up to a diameter of 150 mm. 1000mm and 150kg roll weight
- Unwind end detection with sensor
- Web tension control, feed-in 30-300N (± 10N)
- Web edge control, lateral tolerance ± 0.1mm

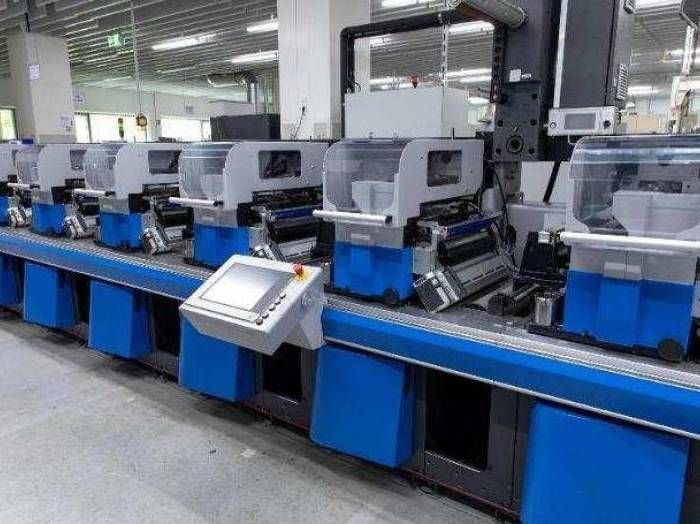

- 6 flexographic printing units (12" - 24" cylinder circumference),
including 1 unit with front and back printing capability
- 6 GEW UV dryers

1 rotary die-cutting unit
- Automatic web tension control 0 - 400N (± 5N)
- Corona web treatment
- Contact web cleaning
- Register control lengthwise (all)
- 1 mobile laminating station, unwinding up to 800mm diameter (10°-90° angle)
- 1 grid pull-off unit, variable positioning up to 800mm diameter
- 2 winding and unwinding towers, variable use up to 800mm diameter 800mm
- 2 train stations

The machine is sold without accessories and without camera optics.
The machine can be inspected in production.
