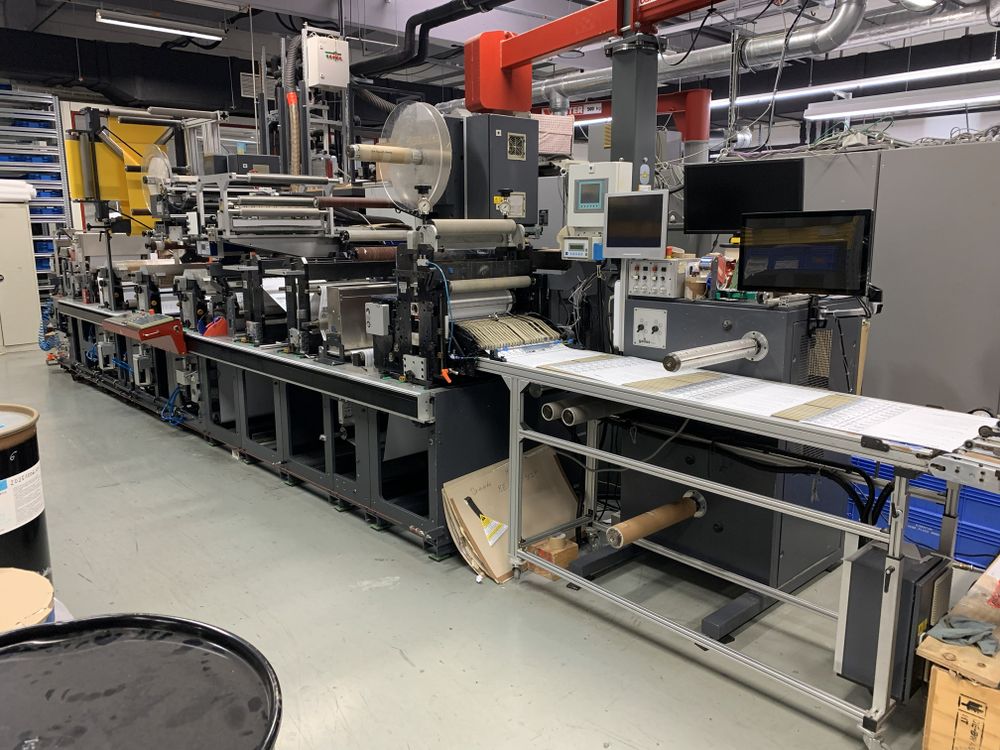

Gallus EM 510 -3+Screen 3 510 mm

• Maximum printing width: 510 mm
• Printing units: 3 dual-driven print stations
• Application: Production of self-adhesive labels

Printing Equipment:
• 3 flexographic print stations with dual-drive technology
• Plate cylinders (1/8"):3 × 88, 3 × 92, 3 × 96, 3 × 100, 3 × 108, 3 × 116, 3 × 120, 3 × 140
• Magnetic cylinders (1/8"):2 × 96, 3 × 100, 3 × 108, 3 × 116, 3 × 120, 4 × 140, 3 × 176, 3 × 184, 2 × 192, 1 × 222
• 13 anilox rollers (various volumes: 4.1; 5.04; 6; 6; 6.3; 6.09; 8; 8.25; 9.58; 13; 13.51; 16.57; 30)
• 2 brand-new anilox rollers
• 3 sleeve systems z=88 for varnishing (incl. mounting station)
• Screen printing unit

Die-Cutting & Converting:
• 3 die-cutting stations
• 2 stations equipped with adjustable counter-pressure cylinders (Spilker Variabase)
• Laminating station
• Waste removal on rail system:o 2 matrix rewinders (up/down)
• Double-spindle rewinder (roll-to-roll)
• Insetter control for pre-printed webs
• Register control for 5 stations (3 printing + 2 die-cutting, Sensotec)

Drying & Treatment:
• 3 × UV curing systems from Uviterno (240 W/cm)
• 2 × NIR drying modules for water-based inks (Lambda Technology)
• Corona treater 2 kW (SIT)

Web Guiding & Control:
• E+L web guiding system with:o 2 ultrasonic sensorso 1 line sensor
• E+L ELSCAN video inspection system
• Web cleaning system
• Complete set of anti-stick rollers

Additional Equipment:
• Outfeed conveyor for single labels
• Mounting trolley
• Various spare and accessory parts
• Color tray inserts
