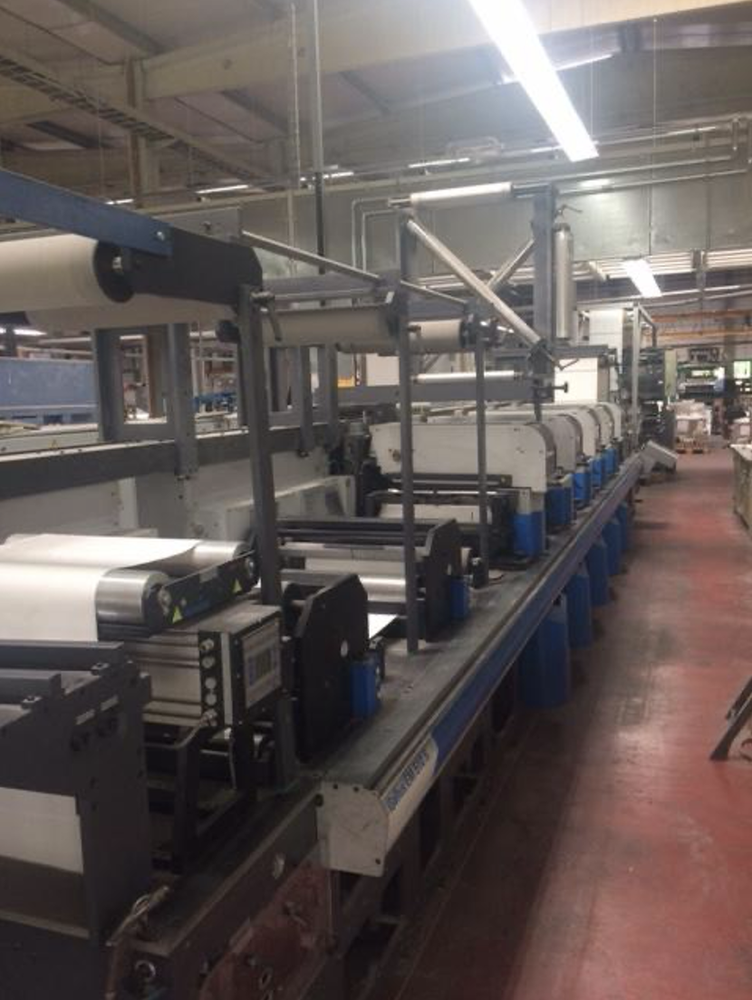

Gallus EM 510S 5 1250 mm

Technical data:
Printing Section :
5 × UV Flexo Printing Units
5 × UV Dryers
Web Inspection: BST PowerScope 300 – Web Inspection System
Unwinder:
Max roll diameter: 1250 mm
Heavy-duty construction with pneumatic shaft and web tension control
Integrated splice table and web guiding system
Rewinder:
Max roll diameter: 1250 mm (≈ 40 inch)

Cold Foil / Lamination Module:
Enables in-line application of cold foil or over-lamination for premium label finishes (metallic, protective film, etc.)
Turnbar (Web Inversion Unit): Allows reverse-side printing or lamination — flexible for multi-layer label applications

Remailing Section: 24”
Supports reprocessing or secondary processing of pre-printed materials

Additional Modules:
Ben Bunch 500
Die-cutting unit EM 510 (for use with magnetic cylinder, adjustable for gap)
Cross Cutting Cylinder (inline sheeting or perforation — precise longitudinal or transverse cutting)
Punching Units (adjustable punching length from 12” to 26”, ideal for perforations, registration holes, or special die-cut shapes in-line)
