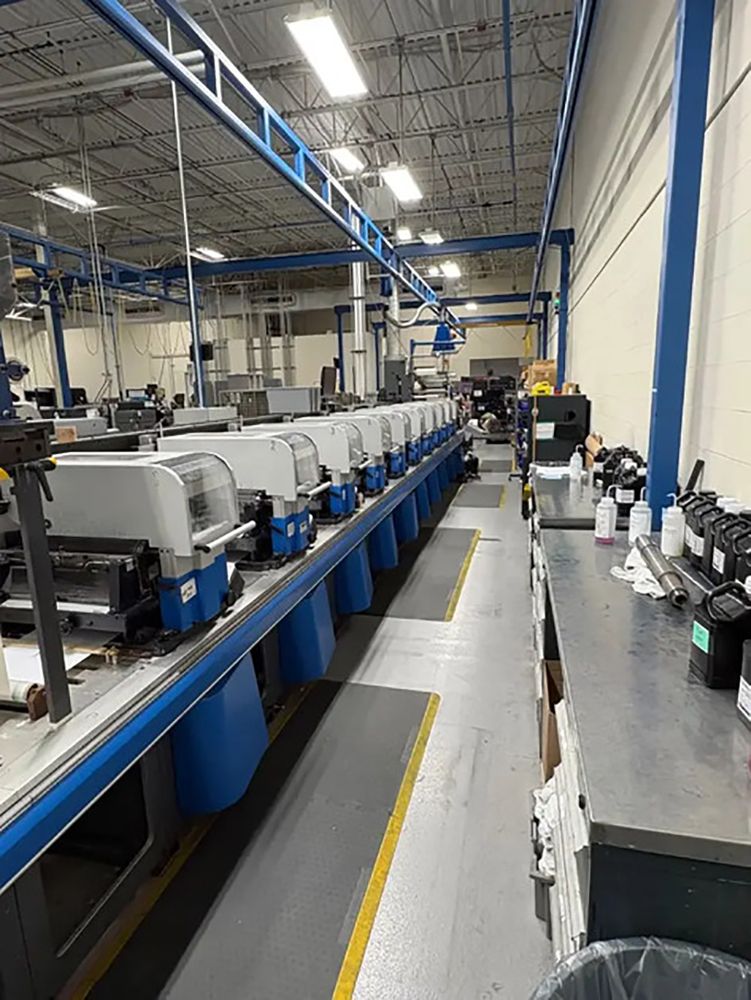

Gallus EMS 430 10 660 mm

Max. Web width:: 435 mm
Min. web width: 215 mm
Max.Print width: 660 mm
Min. print width: 304 mm
Max mechanical Speed: 150 m/min.
KTI automatic unwinder
Standard Gallus unwinder
Web edge control
Web tension measurement
10 printing platforms
10 servo drives for print cylinders
10 servo-driven chill rollers
10 dynamic impression systems
10 IST UV curing units
4 ink pumps for flexo print units
1 processing platform
2 rotary die-cutting units
1 slitting unit
1 web video inspection system
1 exit-side processing platform
Standard Gallus rewinder
Matrix rewinder
1 laminate unwind/rewind unit, 1 separate lamination unit for linerless laminate
Repeat length correction
Automatic register control
10 anti-static systems for print units
2 anti-static systems for die-cutting units
225 print cylinders / 77 anilox rollers / 6 magnetic die cylinders
Web cleaner
Corona treater
