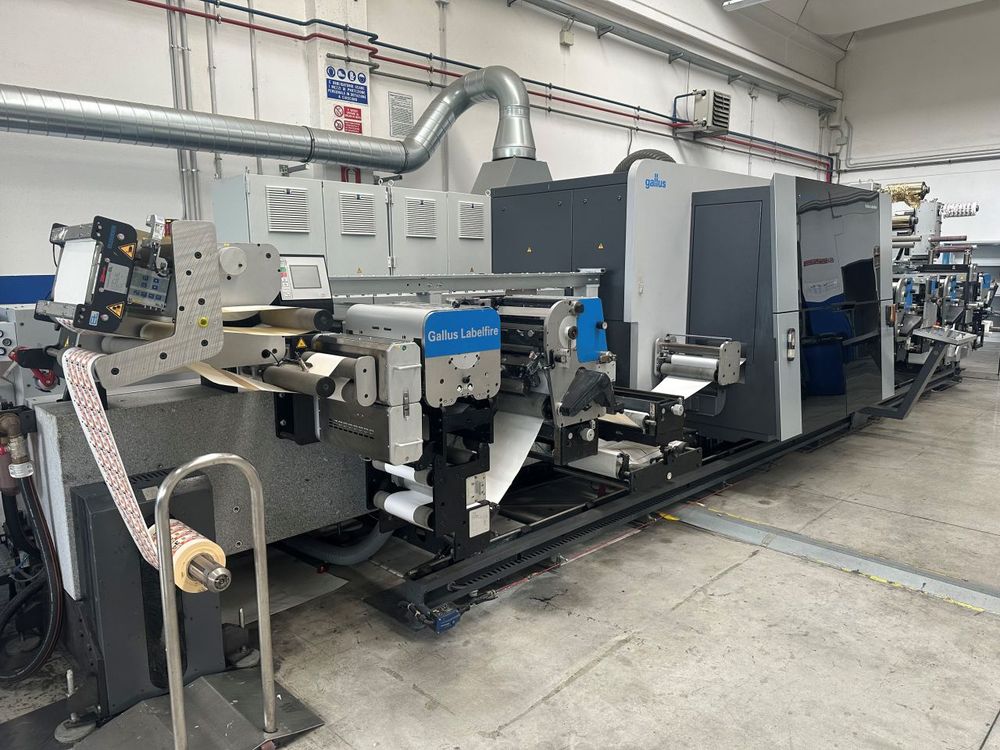

Gallus Labelfire 340 7 340 mm

Options :
Print process UV
Piezo DoD
Inkjet Print speed 50 m/min with semi-rotary die-cutting unit 70 m/min with Speed package Productivity max. print area 1.020 m²/h
Print resolution 1200 × 1200 dpi native at a droplet size of 2 pl visual resolution approx. 2400 × 2400 dpi
Number of digital inking units Labelfire 340: 7c + white Labelfire E 340: 4c with optional white Colors white + GOV (green/orange/violet) + CMYK (cyan/ magenta/yellow/black)
Print width max. 340 mm
Substrates mono films, papers and composite materials 50 350 µm can be extended to 20 400 µm
for special applications Size (L × W × H) 11500 × 4500 × 2200 mm (basic configuration) Variable data iVDP
(industrial variable data processing, e.g. barcodes, QR codes, alphanumeric text),
PDF/VT fully variable data printing (optional) Interfaces to conventional pre-press software solutions
Reel diameter max. 40” (1016 mm)
Number of conventional processing platforms 5 plus die-cutting unit
Flexo unit format length 254–508 mm (10”–20”)
Substrate conditioning web cleaning, corona, anti-static
Finishing screen printing, varnishing, cold foiling, laminating, die-cutting, matrix rewinder, longitudinal cutting
Die-cutting unit semi-rotary, format length: 6”–20” (152–508 mm), rotary as an option
