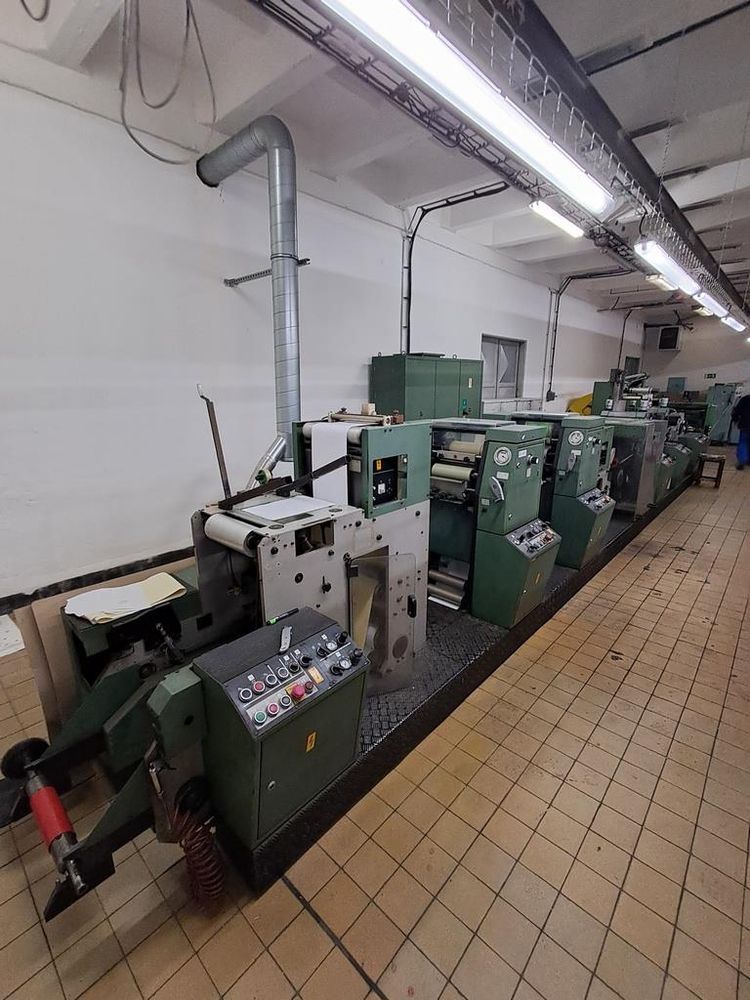

Gallus R 250 F 4 260 mm

Flexographic Printing Machine
Belt speed:
speed during setting: 5 m/min
maximum speed belt: 150 m/min
reduction of the maximum speed belt when integrating the following units:
rotary letterpress unit: max. 100 m/min

Flat die-cutting unit:
at die-cutting length 315 mm: 104 m/min
at die-cutting length 157 mm: 52 m/min
rotary dry printing unit: 45 m/min
rotary screen printing unit: 35 m/min
material thickness: 0.05 – 0.33 mm
flat weight: 80 – 300 g/m²

Unwinding:
belt width: max. 280 mm / min. 130 mm
roll diameter: max. 1000 mm

Winding:
roll diameter
winding unit max. 700 mm
automatic winding 3 spindles max. 380 mm
grid exhaust unit max. 800 mm

Stacking:
belt width max. 280 mm
format length
stacking unit max. 460 mm
Schuppen - delivery max. 305 mm

Printing:
printing width max. 260 mm
printing length max. 609.6 mm / min. 304.8 mm
setting step 3.175 mm

Flat die-cutting:
die-cutting width max. 270 mm
die-cutting length max. 314.325 mm / min. 157.163 mm
setting step 1.59 mm

Rotary cutting:
cutting width max. 270 mm
cutting length max. 609.6 mm / min. 304.8 mm
setting step 3.175 mm

Rotary punching:
cutting width max. 260 mm
cutting length max. 609.6 mm / min. 508 mm
setting step 3.175 mm
