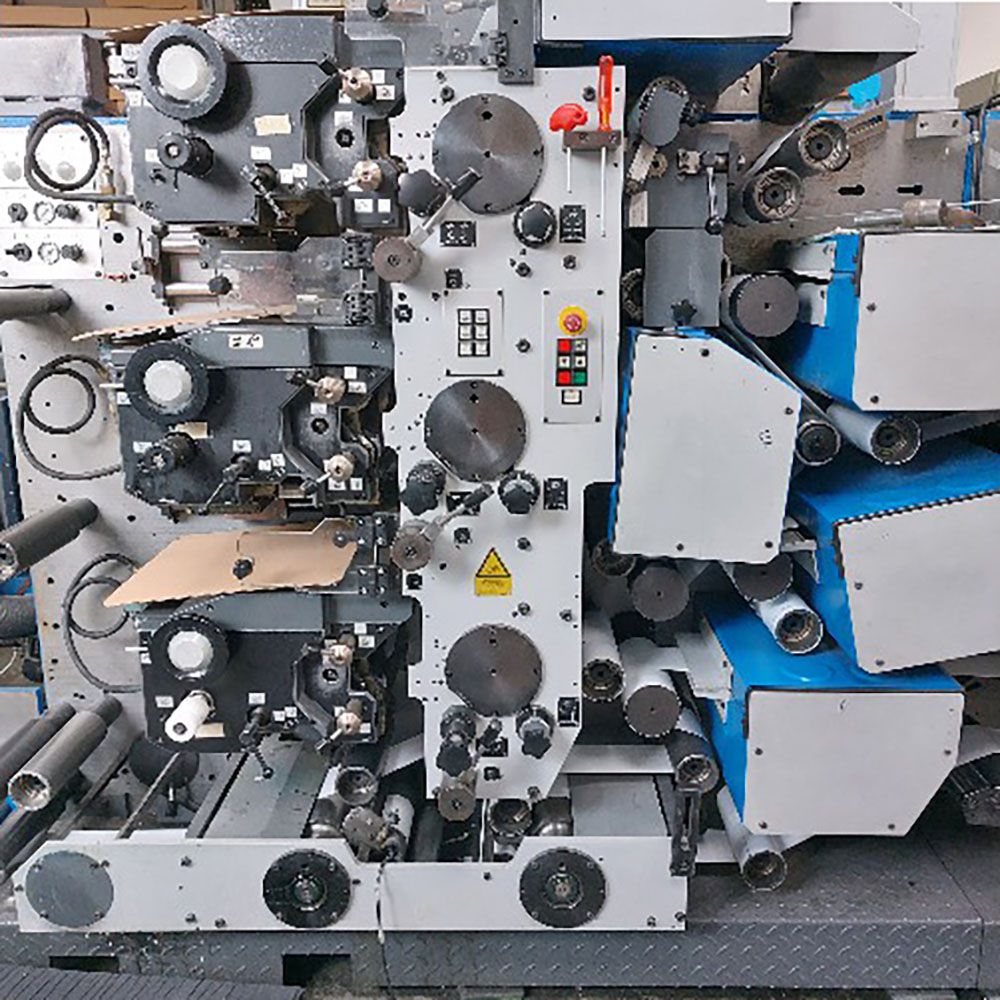

Gallus R200B 9

• Printing Units: 9 Letterpress printing units
• UV Flexo Coating Unit: 1 (including spare coating roller and anilox roller)
• Screen Printing Units: 2 (without pump)
• GAP Master Units: 2 (1x R200B, 1x R160B)
• Web Guides: 2

Additional Equipment & Accessories:
• Laminator
• Corona treater
• Uviterno UV interdeck drying system
• Intermediate dryer between printing unit 1 + 2
• Lifting device for printing units
• Support tables for printing units
• 11 Cylinder shafts

Spare Rollers:
• 8x Printing rollers Ø 72.7 mm
• 4x Transfer rollers
• 1x Lifting roller
• 3x Cross-wipe rollers
• 8x Ink agitator rollers
• 4x Rider rollers
• 10x Inking rollers
• 4x Printing rollers Ø 97 mm
• 6x Rubber return rollers

The whole Cylinders etc. are from two GALLUS R200 – so we must speak which size do want.Magnetic Printing Cylinders (with tooth count):
• 6x 72 teeth• 7x each of: 79, 80, 81, 84, 88, 89, 91, 94, 96, 97, 99, 101, 102, 104, 105, 108, 111, 114, 120, 122, 130 teeth
• 6x 140 teethMagnetic

Printing Cylinders (160 teeth, with adapter): • 6x each of: 96, 99, 102, 111, 120 teeth
Magnetic Die Cutting Cylinders:• Sizes: 60, 61, 64, 65, 66, 68, 70, 72, 74, 76, 79, 80, 84, 88, 89, 91, 94, 96, 97, 101, 104, 108, 114, 130 teeth
Complete set of anilox rollers:• 125 l/cm, 130 l/cm, 145 l/cm, 155 l/cm, 2x 160 l/cm, 175 l/cm, 190 l/cm, 200 l/cm
