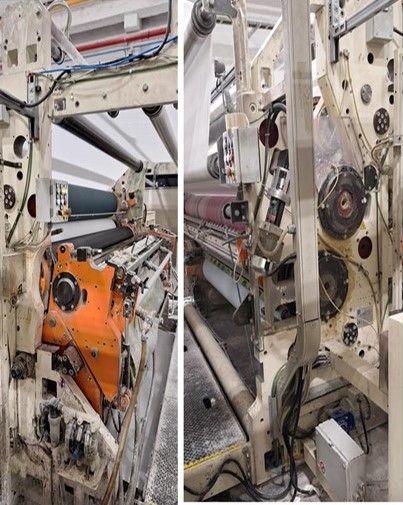

Casmatic, Gambini, TMC 2.750 mm Tissue converting line complete 550 m/min w/ lamination, printing , wrapper bagger bundler, palletizers

Unwind Stands: number of unwinders 3 pcs
Max unwinder speed 550 m/min ( technical spec gives: 900 m/min)
Max Jumbo Reels JR weight 3,500 kg
Working width 2.50–2.57 m used / 2.75 m max

Printing Unit Model Gambini Mod20.40/4 (2008)
Printing type Flexo Number of colours: 4
Max speed 430 m/min

Lamination & Embossing Unit Model Gambini 40.00 SD
Roll technology Micro/Macro, Nested
Embossing roll diameter 409 mm
Max speed with glue 550 m/min
Max speed without glue 700 m/min
Embossing patterns Penny, Solo, Bulk2, Paloma, Flower, Koket

Rewinder Model Gambini Contact 50.55
Max speed 530 m/min
Log speed 27 logs/min
Roll diameter 90–145 mm
Perforation TOPA 110–140 mm
Perforation KIRO 220–280 mm

Tail Sealer Model Gambini 60.30
Max speed 27 logs/min

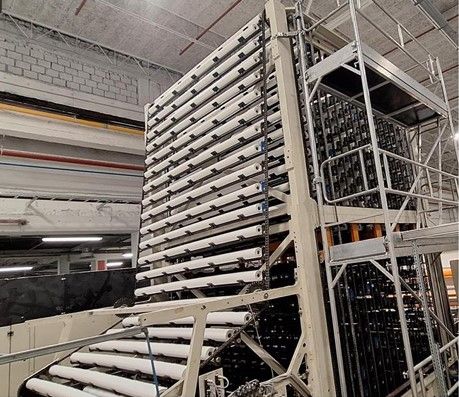

Log Accumulator Model Gambini 60.30
Max speed 27 logs/min

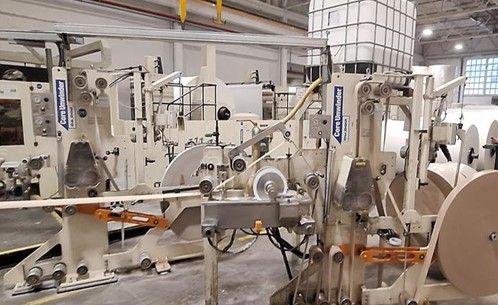

Core Maker Model Gambini mod400.10
Max speed 74 m/min
Core diameter 45 mm
Core length 2750 mm

Log Saw Model Gambini m90.40/M
Max log diameter 145 mm
Blade diameter 610 mm
Max speed TOPA 210 cuts/min
Max speed KIRO 125 cuts/min

Wrapper model TMC ZERO ZA311
Max speed 125 cycles/min

Bagger Model Amotek PB168LSx
Max speed 28 cycles/min
Entrance size 650/650/280 mm and 390/650/280 mm

Bundler 1 Model Casmatic INS USA CPTV2
Max speed 8 cycles/min

Bundler 2 Model Casmatic INSCPTI CO
Max speed 6.5 cycles/min

Palletizer 1 Model Pakman RC
Capacity 6 cycles/min
Max pallet height 2900 mm

Palletizer 2 Model Roboteh RC11 (2017)
Capacity 6 cycles/min
Max pallet height 2900 mm

Stretch Wrapper Model SIAT Mancon 1710 (2017)
Capacity 25 pallets/hour
Max pallet height 2800 mm
