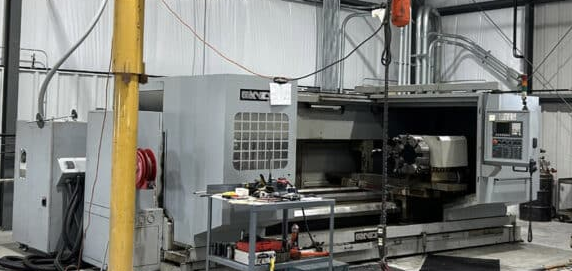

Ganesh Fanuc Oi-TD 420 RPM GT44120 2 Axis

X-axis rapid feed rate: 196 ipm
Z-axis rapid feed rate: 196 ipm
X-axis cutting feed rate: 118 ipm
Z-axis cutting feed rate: 118 ipm
Control: Fanuc Oi-TD
Tailstock: included

Swing over bed: 44"
Swing over cross slide: 27.60"
Gap opening width: 23.43"
Distance between centers: 120"
Bed width: 32"
Max workpiece weight (chuck only): 6,600 lbs

Spindle motor: 30 HP
Spindle speed: 6–420 RPM
Spindle bore: 6"
Spindle nose: A2-11
Spindle taper: MT-6

Cross slide travel: 23.62"
Turret tool stations: 8
OD tool size: 1.25" x 1.25"
ID tool holder bore: 1.97"
24" 3-jaw manual chuck
48" 4-jaw chuck
