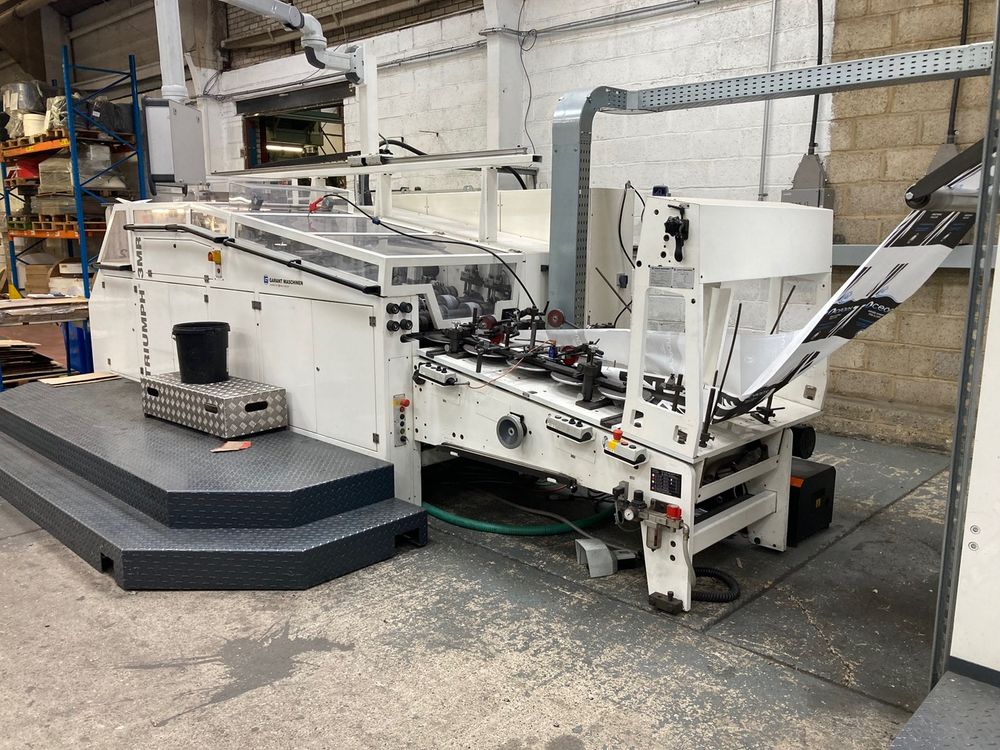

Garant TRIUMPH 3 MR Block bottom bag making machine

Bag widths :105-320mm
Cut-off lengths : 240-650 mm
Botom width: 55-180m

Main machine incl. the following components:
Jumbo roll unwind, for a max. roll diameter of 1300 mm, including 1 (one) pneumatic winding shaft for inner core diameters of 76 mm,
including roll lifting device and automatic web tension control
servomotor-driven brake for the paper unwind with suspended dancer roller
precise and continuous web tension control over the entire diameter of the paper roll
Possibility of remote diagnostics by modem integrated in the bag machine
nozzle seam pasting assembly
Slitting unit to obtain a larger bottom flap o Tube forming with servo-motorized adjustment/* positioning of the gusset forming disks
Pivoting and moveable 15" touch screen panel with graphic display of the control elements. The input of data is product related
2 draw units with servo drive and pneumatic lift-off. Input of cut-off length in 1mm
increments. Web tension adjustment in 0.01 mm increments.
Serrated-cut assembly
The servo drive ensures automatic adjustment of the cutting speed to the respective
cut-off length.
Transport belt with servo drive after the cutting unit, to transfer the separated tubes to the precreasing station
Pre-creasing station infinitely adjustable by motors while machine is in operation.Bottom opening station featuring axial adjustment during operation.
When changing the gusset depths, no cams have to be exchanged.
Bottom forming cylinder with adjustable side grippers, adjustment is via electric motor. When changing the bag size, an exchange of the grippers is not required
Bottom pasting unit with automatic glue supply, continuous rotation and lift-off at machine The glue application unit is designed for the use of low viscosity adhesives
Bottom closing station with rotating sickles, the position of which is infinitely adjustable by an electric motor during operation of the machine
Deviating drum
Delivery cylinder with pneumatic counter. The bag marking the count projects upwards.
The number of bags per packet can be adjusted in increments of one bag
Delivery table
Electronic print mark control for the processing of pre-printed rolls
Switch cabinet with SPS, type SIEMENTS S 7 i frequency converters, operating and control units incl. connecting cables
as per standard installation drawing Pre-creasing station infinitely adjustable by motors while machine is in operation.
