Gardner HEAVY DUTY 12" X 24"
Ref :
2730365-3-GO
Condition :
Used
Manufacturer :
Gardner
Model :
HEAVY DUTY 12" X 24"
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)

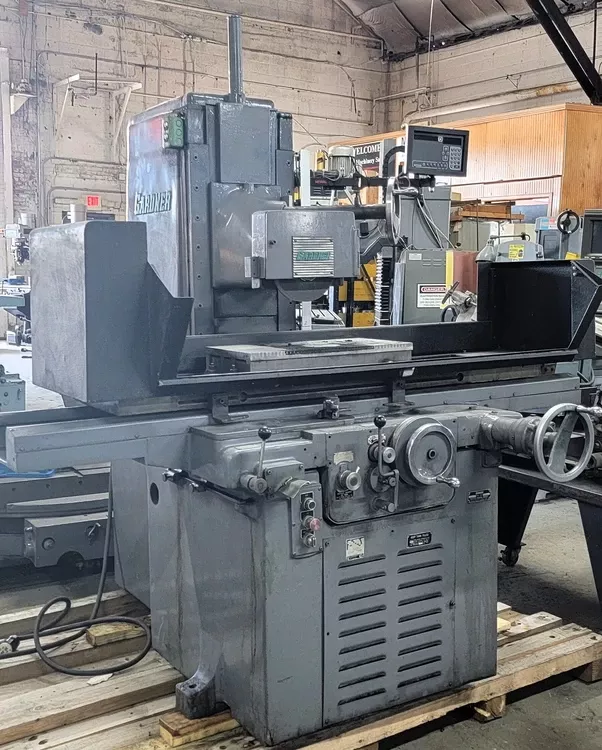

HORIZ SURFACE GRINDER
GARDNER HEAVY DUTY 12" X 24"
Table size: 12" x 24"
Longitudinal travel: 28"
Cross travel: 13.5"
Vertical travel: 12"
Center line spindle to table: 12"
Wheel size: 12" x 1" x 3"
Spindle motor: 3 HP
Voltage: 220V, 3 phase
Weight: 5230 lbs
Dimensions: 104.125" L x 79.5" W x 86.5" H
Automatic table left to right
Elevation handle on column
12" x 24" magnetic chuck
Rapid up & down on wheel
Newall 1-axis Model DP700 digital readout system
Manual operation system for large machine
