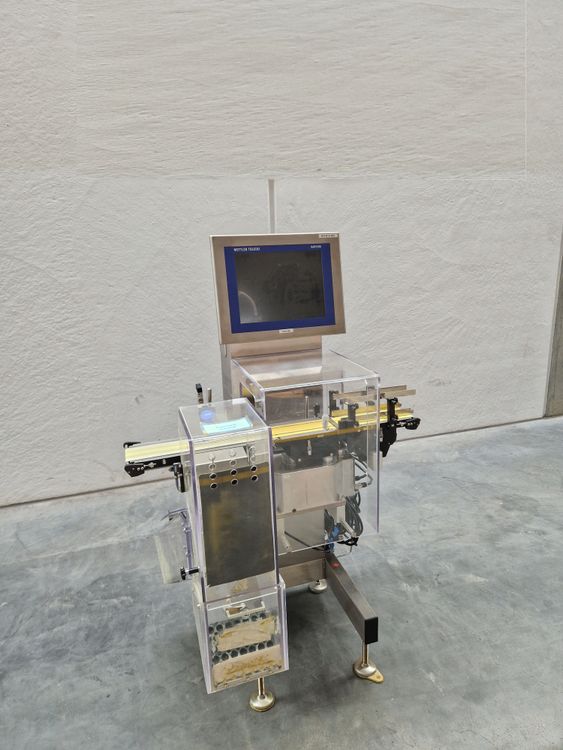

Garvens XS 2, Belt check weigher

(Update 2020 to Windows 10)

Description:
• Conveyor belt runs from right to left
• Weighing range 5-600 g
• Conveyor belt speed max. 30 m/min
• Throughput max. 90 weighings/min
• Centre distances inlet belt/weighing belt/outlet belt 250/200/410 mm
• Conveyor belt width 100 mm
• Resolution e= 0.1 g
• Accuracy from +/- 0.1 g
• Temperature range 0-40°C
• Load cell BF8-L-P
• Enclosure of the weighing area
• 1 reject ejector for incorrect weights with pneumatic pusher and collection container on the outfeed belt
• Without printer
• HMI 15-inch touchscreen
• USB connection
• Update HMI and IPC (B PC 2200) in 2020
• Update to Windows 10 operating system in 2020
• Height adjustable
• Connection 100-240V/50-60Hz
