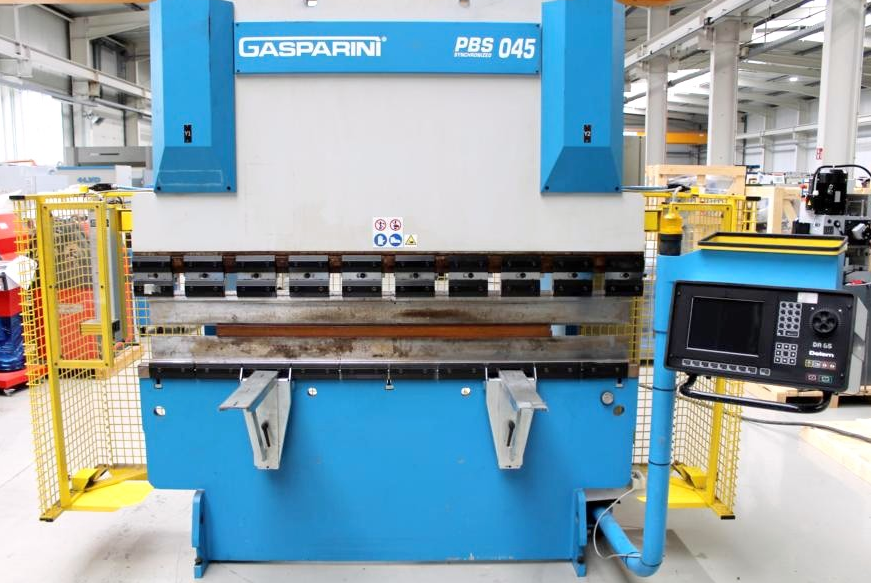

Gasparini PBS 45/2000 FP 45 T

Press Force 45 t
Chamfer Length 2050 mm
Distance Between Columns 1600 mm
Column Arm 300 mm
Stroke 150 mm
Daylight 395 mm
Adjustment Speed 100 mm/sec
Working Feed 1-10 mm/sec
Return Speed 70 mm/sec
Table Width 60 mm
Table Height 905 mm
Oil Volume 150 l
Operating Pressure 340 bar
Voltage 400 V
Total Power Requirement 5.5 kW
Machine Weight 3500 kg
Machine Dimensions 2900 x 2100 x 2420 mm

DELEM CNC Control Model DA 65
Swivel Control Panel Front Right
2D Graphical Programming & Product Display
Tool & Program Library
New Screen Installed 11/2023
CNC Controlled Axes Y1 + Y2 / X / R Axis
CNC Controlled Back Gauge (X Axis)
CNC Controlled Height Adjustment of Back Gauge (R Axis)
Manual Adjustment of 2x Stop Fingers (Z Axis)
AMADA-SYSTEM A Upper Tool Clamping Including Upper Wedge Crowning
AMADA-SYSTEM A Lower Tool Clamping
FIESSLER Motor-Adjustable Laser Protection Device Front (AKAS 160 S)
1x Freely Movable Foot Switch
2x Front Support Arms
1x Set of AMADA-SYSTEM A Bending Tools
Rear Safety Device (Lockable Door)
Side Safety Device (Pivoting Doors)
Control Instructions (PDF) + Machine Circuit Diagram
