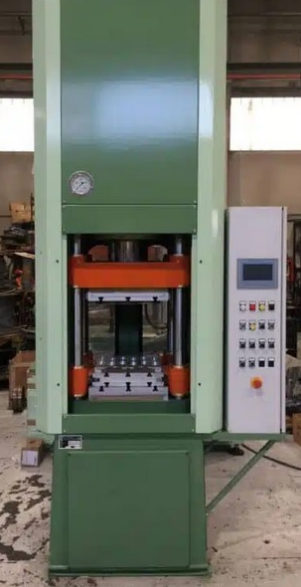

GBF Potvel 480 x 520 mm Vulcanizing Press

Condition: Used, Refurbished

Specification:
4-column vulcanizing press 480 x 520 mm, used
- Clamping force: 100 t
- Closure: bottom-to-top
- Heating plates: 2 electric plates
- Two new heating elements
- Heating temperature of the plates: up to approx. 210-220 °C
- Dimensions of heating plates: 480 x 520 mm
- Distance between heating plates approx.: 400 mm
(will be determined during refurbishment)
- Working height of the lower plate: Approx. 1,100 mm
- AC motor: 5.5 kW
(to be determined during refurbishment)
- New solenoid valves
- New control cabinet with Siemens 7" touch panel
Type KTP700 Basic
- Siemens S7-1200 PLC system
- Schneider frequency converter
- Remote maintenance unit
- New wiring
- ReeR light curtains in the front operating area
- Movable safety cover in the rear area
- Fixed safety cover on the sides of the pressing area
- CE marking
- Dimensions approx.: 1,900 x 800 x 2,050 mm (height)
Overhauled according to CE standard safety regulations
Operating and maintenance instructions in German
Warranty: 1 year
