Fameccanica, Optima complete Adult diaper machine- 5 sizes ( single & double packaging) start 2019
MIDDLE EAST

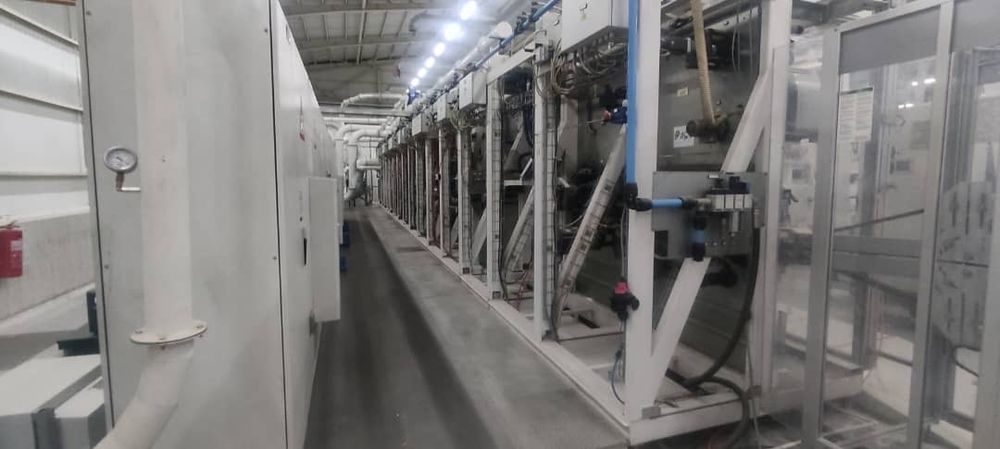

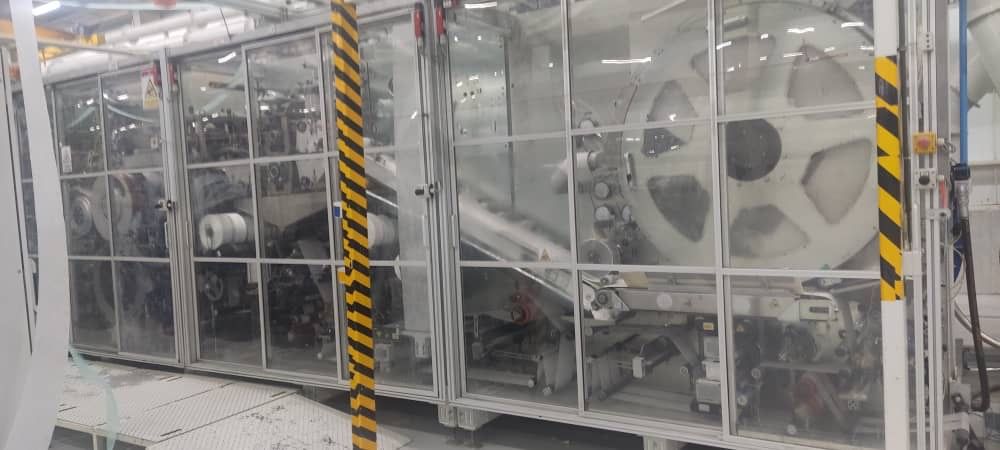

-Adult diaper machine complete with packing bundling
Capacity : 500 pieces per minute -PPM
From size 1 to 5 in single and twin (double) packaging
Model :Fax-ss
Manufacturing Company : Fameccanica Data s.p.a ( Italy)
start up 2019/ installed 2018

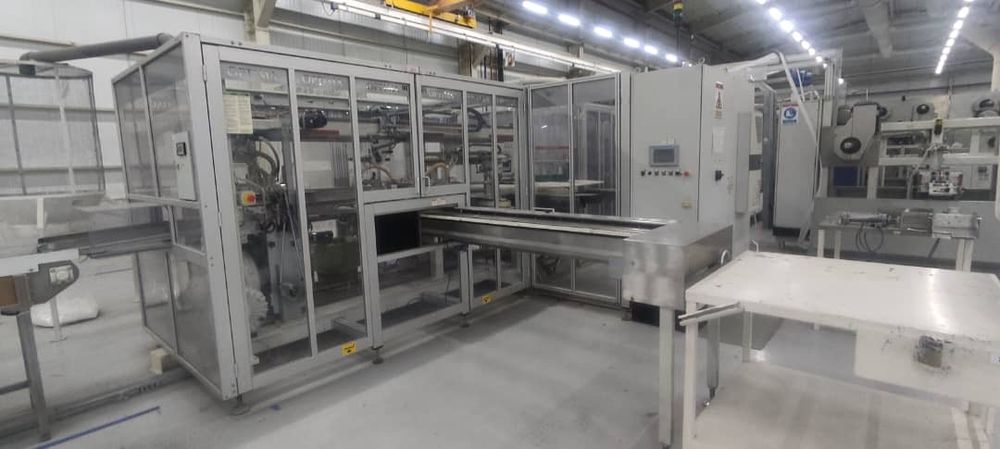

-Packaging machine : brand OPTIMA ( Germany ) // Year of Manufacture: 2005 // Type : paksis // No: 2621791.13.01
-Bundling Machine GEVAS, Brazil // Manufacturing Year : 2006 // Model: STARWRAP PREMIUM // Serial Number : 916

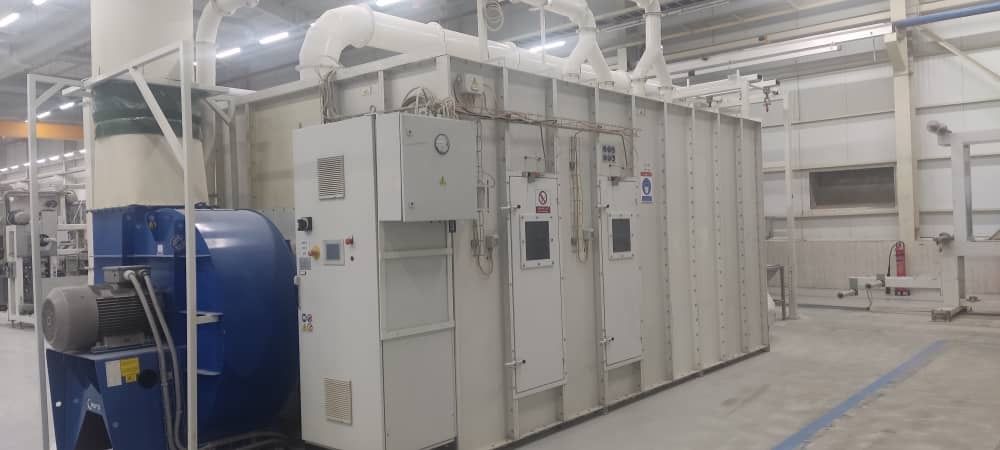

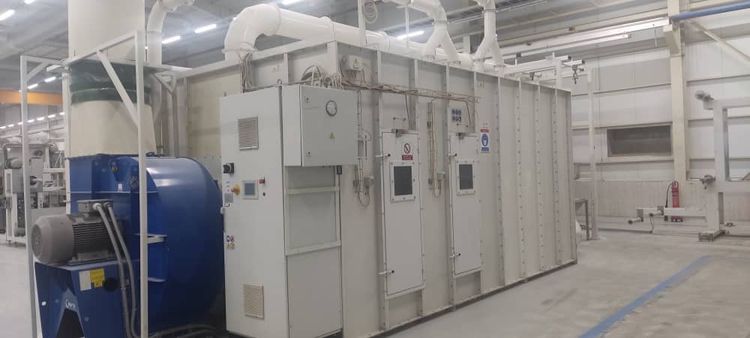

Machine Upgrade including Back Air and Drum Forming , Performed by Bicma ( Germany ) ,Year : 2011 , Serial Number : 0501-888 : Adhesive System : Nordson // Filter Room : Osprey // Fans: CCB // Absorbent Powder Distribution System: Sapplicator // Vision System : Keyence // Material Guiding System
, Maxcess // Blades: Mainly Fameccanica & Dienes // Sensors : Mainly Sick // Pneumatics : Festo & Norgren //
End-of-Line Equipment: Metal detector, conveyor, carton gluer film, sealing machine, and manual packing
specifications:
Air Consumption : 10,000 liters per minute
Voltage- Phase, 400 VAC
Power Consumption : 500 kW
Air Pressure : Minimum 6 bar
Other Utilities :Very low (optional) water consumption
Direction: Right hand
Exhaust Air Output : 500 m³/min , 2 kPa, 20 °C , 22 Kw , 1500 rpm
Drive System ( s ) : Rexroth & Allen-Bradley
PLC System ( s ) : Siemens & AllenBradley
Overall Noise Level : 87 d
75 tons weight
Dimensions : Length: 13 + 48 = 61 meters , Width : 11 meters , Maximum Height : 5.5

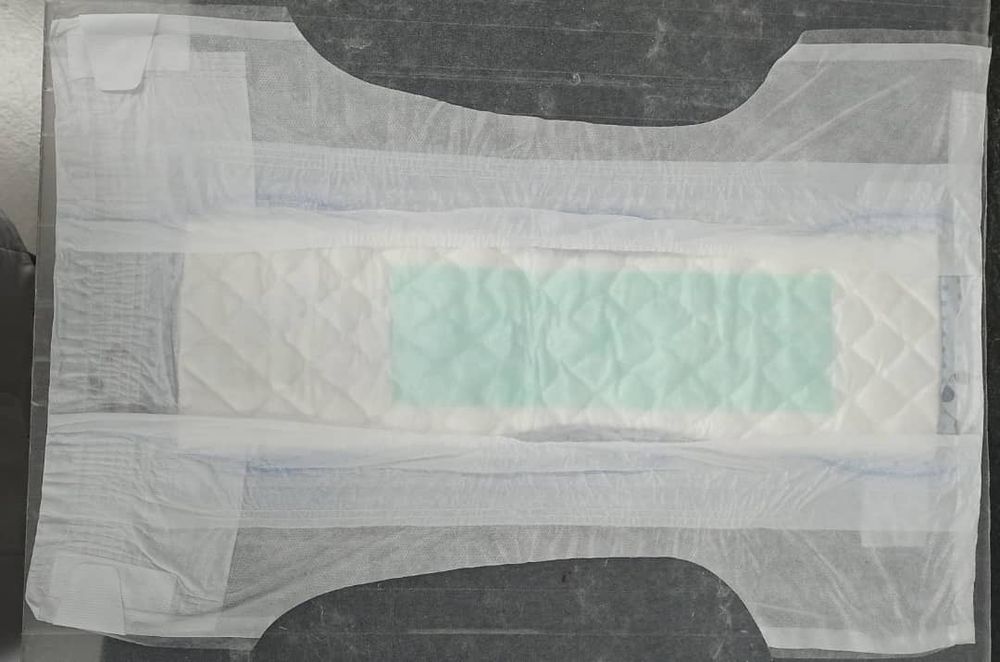

Raw Material Information Fluff Cellulose // SAP Absorbent Powder // Elastic Band // Frontal Tape // Side Tape // Back Ear and Front Ear // Hotmelt Adhesive // Hydrophilic
Nonwoven ( C-rap ) // Top Sheet // Hydrophobic Nonwoven ( Cuff ) // Backsheet ( TBS ) // ADL ( Acquisition Distribution Layer ) // Packaging Film pe
Packaging Information: The product is first packed in printed film and then placed inside cartons or bundles (using the GEVAS machine) . The number of packages per
carton or bundle varies between 4 to 8, depending on the size. Afterwards, they are placed on metal or wooden pallet
Number of Operators : 7 persons
