Datex Ohmeda, GE Aestiva 5

Reconditioned/serviced/calibrated by a Fully Trained Medical Engineer.
Pre-owned, working and in good condition.
All products come with power cable or unless stated.

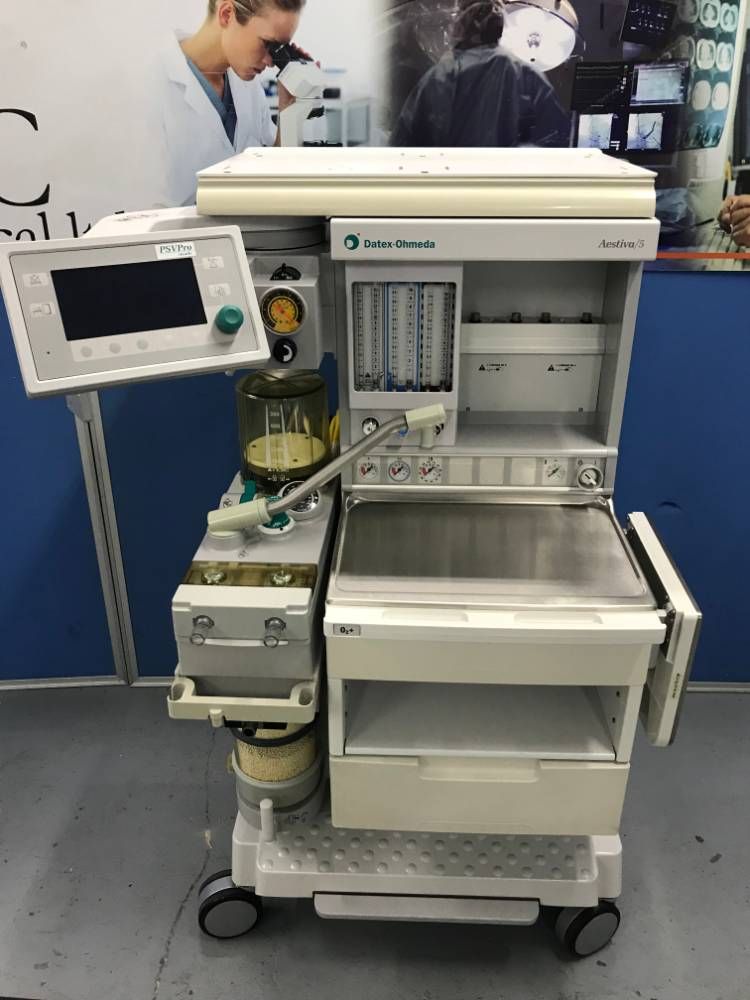

GE Datex Ohmeda Aestiva 5 Anesthesia Machine fitted with a 7900 ‘ Smartvent’
ventilator. The Aestiva/5-7900 systems are equipped with
Datex-Ohmeda/GE S/5 Monitoring, which can be interfaced with
15″ flat screen displays mounted on the anaesthetic machine shelf top.
The machine is straight forward to use, with the SmartVent’s capabilities giving a
higher level of control, whilst reducing agent consumption and saving money.

The Aestiva/5-7900 system comes with either 4.5 or 4.8 software, providing Volume &
Pressure. Each machine is fitted with both O2, N2O, and Air medical pipeline hoses and
cylinder backup with twin vaporiser manifold.

The GE Datex Ohmeda Aestiva/5 with SmartVent offers some of the capabilities of a
respiratory ventilator but saves the cost of bringing a separate ventilator into the
operating room. The advanced ventilation is provided by the 7900 ‘Smartvent,’
its sophisticated ventilation capabilities support the needs of a broad patient range,
offering low and minimal flow anaesthesia, reducing agent consumption to save on
anaesthetic agent costs. (Vaporisers are not included)

The optional S/5 monitoring fitted to the Aestiva’s can be either 15″ Flat Screens or S/5
Compact Monitors. Each monitor comes with F-CU8 Module frame for housing a
multi-parameter and a gas module providing the following parameters:
- CO2, N2O and O2 measurement, five agent monitoring and agent identification,
ECG, NIBP, Invasive Pressures, Temperature, SPO2 and Respiration.

The complete Aestiva/5-7900 and optional S/5 monitoring have been reconditioned/serviced/calibrated by a Fully Trained Medical Engineer.

Optional Extra: Full set of patient leads

Product Features
Superior ventilation: 7900 SmartVent™
Volume Mode, pressure
Volume Mode, Pressure Control Mode, Pressure Support (PSVPro), Synchronized Intermittent Mandatory Ventilation (SIMV), electronic PEEP
Tidal volume compensation
One motion from mechanical to manual mode
Two key presses to total standby: end case
Cardiac bypass case mode
Open systems architecture
Lower overall height
User configurable drawers/shelving
Innovative patient breathing system
Eight machine hoses/cables integrated
“No tools” disassembly of components
Autoclavable and latex-free • Responsive location of the common gas outlet
Improved low flow/reduced life-cycle costs
Fresh gas flow compensation—automatically
Smooth, faster acting fresh gas flow control
Minimum O2 flow of 50 mL
Dual airflow tube for low flow
