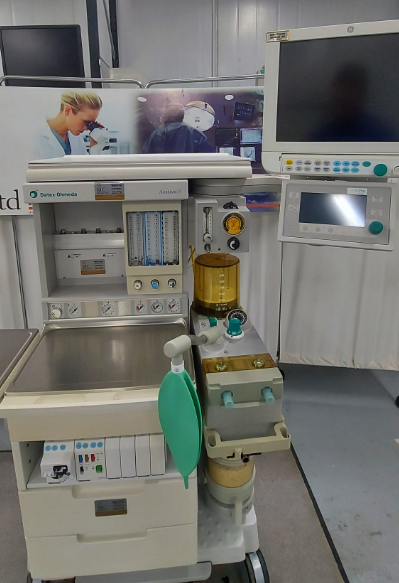

Datex Ohmeda, GE Aestiva 5

GE/Datex-Ohmeda Aestiva/5 anaesthesia system with
7900 anaesthetic ventilator, fitted with 4.8 PSVPro software.

The machine is fitted with O2, N2O and Air medical pipeline facilities along
with O2 and Air cylinder back-up. Fitted with dual cascade flowmeters for
low flowrates and twin vaporiser manifold.

The machine is easy to use with the ‘Smartvent’ capabilities, giving a
higher level of control whilst reducing agent consumption and
saving money.

The advanced Ventilation is provided by the 7900 ‘Smartvent’,
its sophisticated ventilation capabilities support the needs of
a broad patient range, offering low and minimal flow anaesthesia,
reducing agent consumption to save on anaesthetic costs.

The 7900 Ventilator provides 4 modes of ventilation, Volume, Pressure,
PSV Pro (pressure support) and SIMV
(synchronized intermittent mandatory ventilation).
It has electronic peep and tidal volume compensation.

The anaesthesia system is integrated with GE/Datex-Ohmeda S/5
Monitoring, fitted with 15″ Flat Screen above the ventilator display on
the swing arm.

The Monitor comprises of the F-CU8 Module Frame for housing the
Airway Gas Module (E-CAIOV) and the Multi-parameter Module (E-PRESTN).

The Airway Gas Module (E-CAIOV) provides the following parameters:-
CO2, N2O, O2, and the 5 Agent Monitoring, along with Agent Identification.

The Multi-parameter Module (E-PRESTN), provides ECG, SP02, NIBP,
Temperature, Invasive Pressures and Respiration Parameters.

The GE-Datex-Ohmeda Aestiva/5-7900 System with Monitoring also comes
with a complete set of new Patient Leads:- ECG Lead and Clip Set, SP02
Finger Probe/Lead, NIBP Hose, Temperature Connector/Probe,
Invasive Dual Connector, Spirometry Hose with d-lite/sampling line.

Finally, new O&M Manuals, along with User CD are provided in the drawers.

The complete Aestiva/5-7900 System with Monitoring has
been Serviced and Calibrated by a fully trained Medical Engineer.
