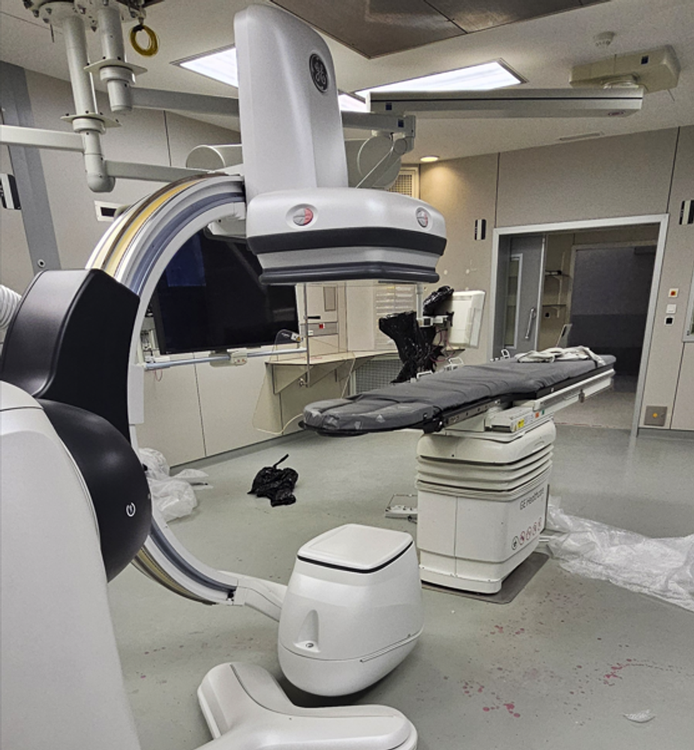

GE Discovery IGS 730

Single Plane Imaging System
Completely Digital Imaging Chain
31cm Digital Flat Panel Detector with 30 x 30cm Active Area Field of View
C-arm Mounted to GE’s Advanced Guided Vehicle (AGV)
>> A Motorized and Mobile Unit that can Freely Move From Imaging to Park Positions
>> Provides Maximum Positioning Flexibility and Unimpeded 360 Degree Access to the Patient
Laser Guided Positioning of the Gantry
100 kW High Frequency Jedi Generators with Grid Pulsed Fluoroscopy Capabilities
GE Performix 160A X-Ray Tube – DOM 2018
Innova Angiographic Collimator
GE Innova IQ Tilting Table
>> Weight Limit up to 204kgs/450lbs
Coolix 4100 Closed Loop Re-Circulation Tube Cooling System
Detector Conditioner
Overhead Monitor Suspension with Large Format Monitor
GE Smart Box and Table Side System Control
Innova TouchScreen Unit
Agila Software

Enabled Software Options:
DSA: ON
InRoom Browser, Simultaneous Sub/NoSub Display, Innova Central Touch Screen,
Fluoro Store, Patient Contouring, Motorized Table, Fluoro UPS, Stenosis Analysis,
Left Ventricle Analysis, Worklist, Cardiac & Dynamic, Spin, Innova Chase, Bolus,
StentViz, InRoom SA, Blended Roadmap, Fast Link, Augmented Calibration,
Surgery, DoseMap
