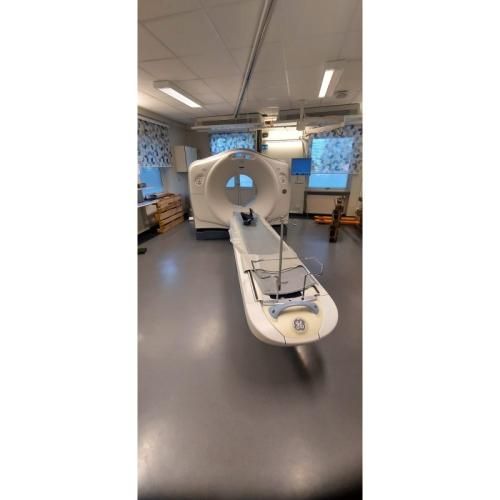

GE Healthcare Discovery CT750 HD CT Scanner

DOM: May 2011
First installation: 2011-11-11
Tube details: YOM: 2021
Date installed: August 2021
Model: Perseus (PN: 5195900)
Total tube mAs: 140 198 174
Total patient exams: 11 938
Operator console: NIO HD64 (2018)
Software ver.: 17BW50.7B_SP1-S-2.V40_PS_HD64_G_GTL
Installed licenses: Data Export CopyComposer NeuroFilter
AutoFilter-and-Transfer HelicalShuttle ASIR Xtream Recon High Resolution Dynamic
Z-axis Tracking Overlapped Recon - Axial Organ Dose Modulation Dynamic Transition
High Pitch Helical - 1.53 Image Check kV_Assist ASiR-V HD_Smart
MAR AWE connection Gemstone Spectral Imaging Enhanced GSI

Features
Dose reduction with ASiR™ technology
OptiDose™ 3D dose modulation
3-axis MPR reconstructions
SmartPrep™ function for contrast tracking
Split Exam (split examinations)
Integrated Volume Viewer on console
Auto filter and image transfer
Dynamic Z-axis tracking
Neurological 3D imaging filters
Low-dose chest imaging mode (Low Dose Lung Screening)
Hi-Power VCT option and high-resolution option
Dual 19-inch colour LCD console
Network integration with ConnectPro software (HIS/RIS)
Protocol automation via AutomA

Technical Details
64-channel scanner, 64 slices per rotation
128i superposition reconstruction
Tube rotation: 0.35 to 1 second
Resolution: 0.625 mm thin images
X-ray tube: Performix™ HD 8 MHU
Power generator: 100 kW
Intensity: 10 mA to 835 mA (in 5 mA increments)
Voltage: 80, 100, 120, 140 kVp
V-Res™ detector: 40 mm coverage
Table dimensions: 1700 mm or 2000 mm travel
Load capacity: 227 kg (500 lb) standard, 306 kg (675 lb) reinforced
Gantry opening: 70 cm
Compatible Accessories
Operator chair
Table tray and infusion stand (IV pole)
Set of long cables
Restraint straps, headrests, wedges and cushions
Phantoms (imaging phantoms for calibration)
Protective cover for the table and foot pedal
