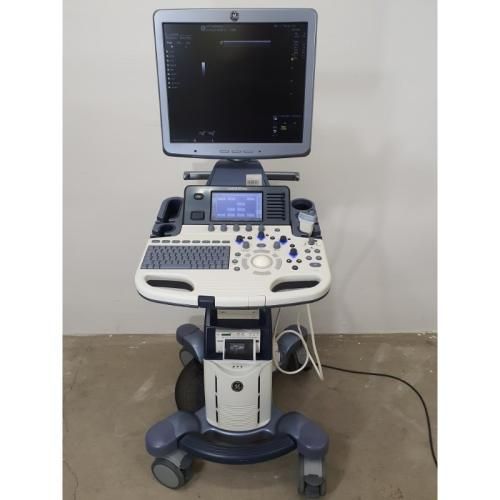

GE Healthcare Logiq S7 Pro Ultrasound System

Accessories :
Linear probe

Options :
YOM: 2013 SW: R1 DVD driver SONY printer port 8P8C (DICOM)

Features
Imaging modes: B-Mode, M-Mode, Colour Doppler, Pulsed, Continuous
Coded harmonic imaging (CHI)
SRI-HD noise reduction
CrossXBeam technology for improved contour definition
Virtual Convex mode for a wider field of view
Auto Optimisation (ATO) of images in real time
Customisable touchscreen control panel
Height-adjustable and rotatable console
Quick backup with EZBackup and EZMove
Built-in DICOM compatibility
3D/4D modes, Elastography (depending on version)
Integrated scan assistant for exam standardisation
Multi-user with user IDs and passwords

Technical Details
Weight: Approximately 90 kg (depending on configuration)
Dimensions: variable depending on options
Power supply: 100-120V / 200-240V AC, 50/60 Hz
Operating temperature: 10°C to 35°C
Humidity: 30 to 80% (non-condensing)
Atmospheric pressure: 700 to 1060 hPa
Monitor: High-resolution LCD screen
Active ports: Up to 4 active probe ports
Connectivity: USB (1.1 and 2.0), HDMI, LAN (RJ45), 3.5 mm audio
Cooling system: Optimised ventilation

Compatible Accessories
3-button wired footswitch (configurable pedal for remote control)
External black and white or colour printers (for printing images and reports)
Removable side trays for storing clinical accessories
Additional probe holders (in addition to the integrated probe holders)
Extended articulated arm for monitor (optional version for greater flexibility)
Gel bottle holder (removable, depending on configuration)
Keyboards or specific interfaces (foreign languages, regional configurations)
