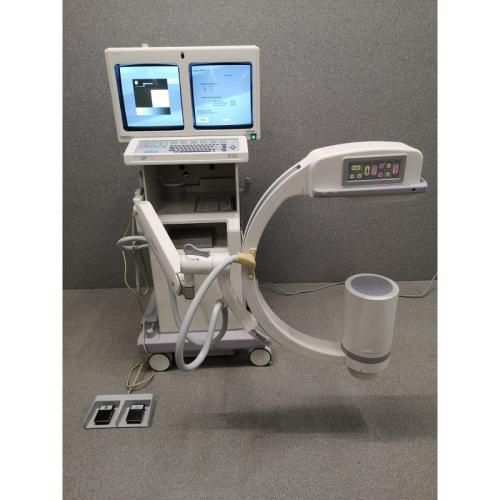

GE Healthcare OEC MiniView 6800
EUROPE (Western and Northern)
YOM: 2005
SW: - WS 4.6.14; - UMC 2.5.32;
SRV 3.1.31 6” Image Intensifier Footswitch Floppy disk station
Solidstate data drive station port 8P8C (DICOM)
2x Connector RS232
3x Laser pointer
Remote controller
Dual Monitors
Features
Optimal image quality with digital processing
Smart Metal technology for distortion-free imaging in the presence of metal
Smooth movement with counterbalanced C-arm and wide rotation range
Intuitive interface with touchscreen and simplified navigation
Dynamic function for capturing image sequences in video format
Compact and easy to transport, requiring only 5 m² of space
Low radiation dose with automatic parameter adjustment
Technical Details
Generator: High-frequency monoblock
X-ray Tube: Fixed anode, 50-micron (0.04 mm) focal spot
Voltage Range: 40-80 kVp
Current Range: 20-160 µA
Acquisition Modes: Automatic (ABS), Manual, Low-dose mode
Image Intensifier: Cesium iodide, dual-mode 4"/6” (10/15 cm)
Camera: High-resolution CCD, 768 x 494 pixels
Monitors: Dual 19-inch (48 cm) diagonal, anti-glare
Image Processing: 1k x 1k, 16-bit, artifact and noise reduction
Storage: Up to 800 internal images, transfer to removable disk
Control System: Touchscreen interface and bilateral control panel
Compatible Accessories
Sterile drapes and protective covers for operating room use
Dual-function footswitch (fluoroscopy, save, print)
Thermal printer for instant image prints
DICOM module for integration with hospital systems
Removable storage disks for external archiving
