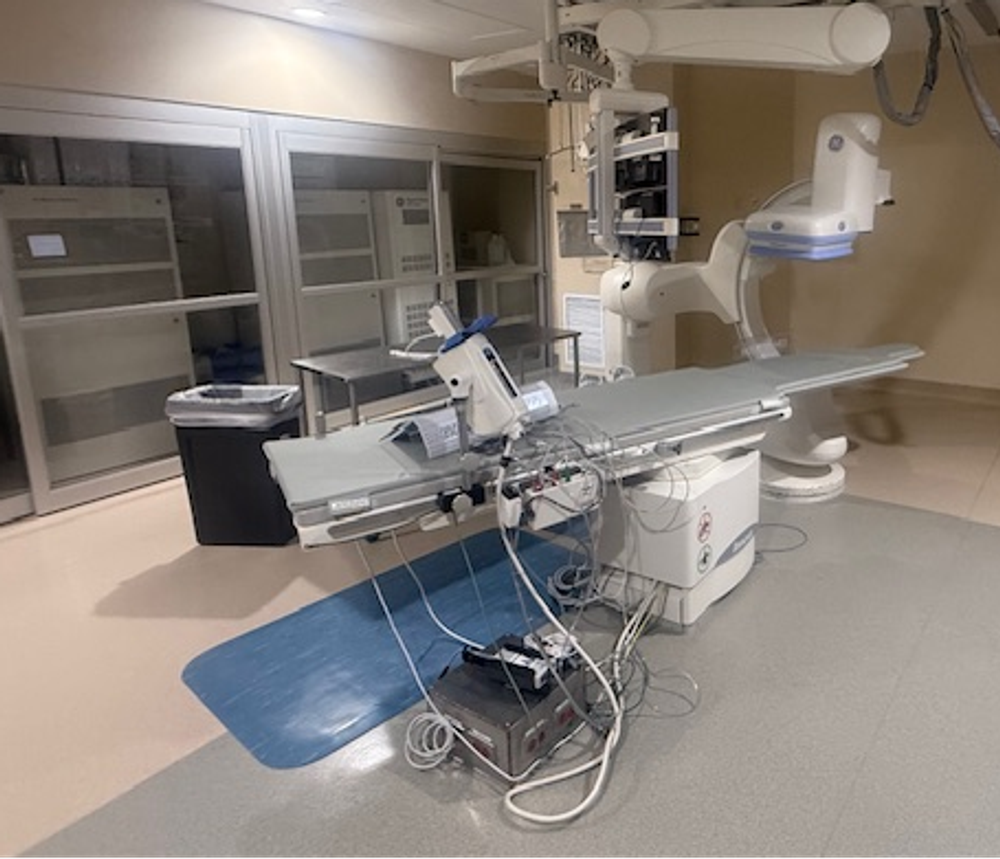

GE Innova 3100 IQ Plus

Single Plane Imaging System
Completely Digital Imaging Chain
31cm Digital Flat Panel Detector with 30 x 30cm Active Area Field of View
GE Exclusive LC Positioner
3 Axis Isocentric Positioner with Floor Mounted L-Arm and offset C-arm
Provides Maximum Positioning Flexibility and Patient Access
100 kW High Frequency Generator with Grid Pulsed Fluoroscopy Capabilities
GE Performix 160A X-Ray tube – 2017 DOM
Innova Angiographic Collimator
OMEGA Motorized Table
Weight Limit up to 204kgs/450lbs
Coolix 4000 Closed Loop Re-Circulation Tube Cooling System
Thermo-Con Detector Conditioner
Overhead Monitor Suspension With Space for up to 4 Standard LCD Monitors
Innova IQ 20 KVA Fluoro UPS
GE Smart Box and Table Side System Control
Standard Innova 3100 User Interface Package
Pathfinder Software Level
DL8 / RTAC8

Enabled Software Options:
DSA: ON
InRoom Browser, Innova IVUS, Innova Central Touch Screen, Fluror Store,
Patient Contouring, otorized Table, Fluoro UPS, Stenosis Analysis,
Left Ventricle Analysis, WorkList, MPPS, Cardiac & Dynamic, Spen,
Innova Chase, Bolus, Stent Viz, InRoom SA
