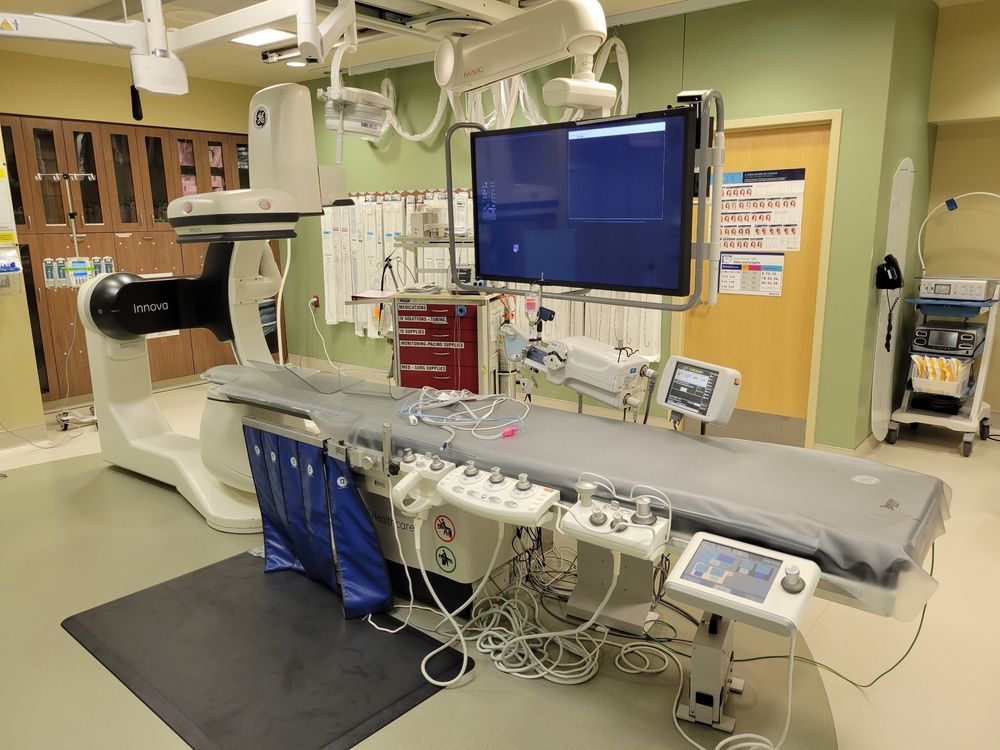

GE Innova IGS 530

Single Plane Imaging System
Completely Digital Imaging Chain
31cm Digital Flat Panel Detector with 30 x 30cm
Active Area Field of View
GE Exclusive LC Positioner
3 Axis Isocentric Positioner with Floor Mounted L-Arm
and offset C-arm
>> Provides Maximum Positioning Flexibility and
Patient Access
100 kW High Frequency Jedi Generator with
Grid Pulsed Fluoroscopy Capabilities
GE Performix 160A X-Ray tube – 2020 DOM
Innova Angiographic Collimator
Omega V Table
>> Weight Limit up to 204kgs/450lbs
Coolix 4100 Closed Loop Re-Circulation Tube Cooling System
Detector Conditioner
Overhead Monitor Suspension with Large Display Monitor
GE Smart Box and Table Side System Control
Innova Central TouchScreen Unit
Standard Innova IGS User Interface Package
Solaris Software Release
Enabled Software Options:
DSA: On
InRoom Browser, Innova Central Touch Screen,
Fluoro Store, Patient Contouring, Motorized Table,
Stenosis Analysis, Left Ventricle Analysis, Worklist,
MPPS, Cardiac & Dynamic, Spin, Bolus
