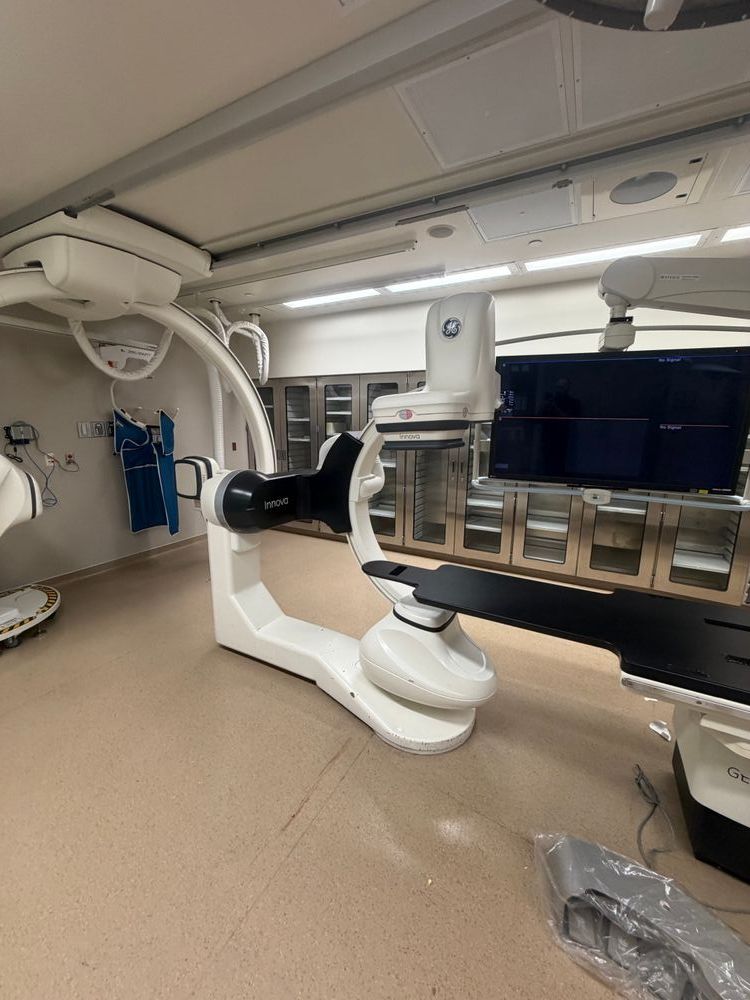

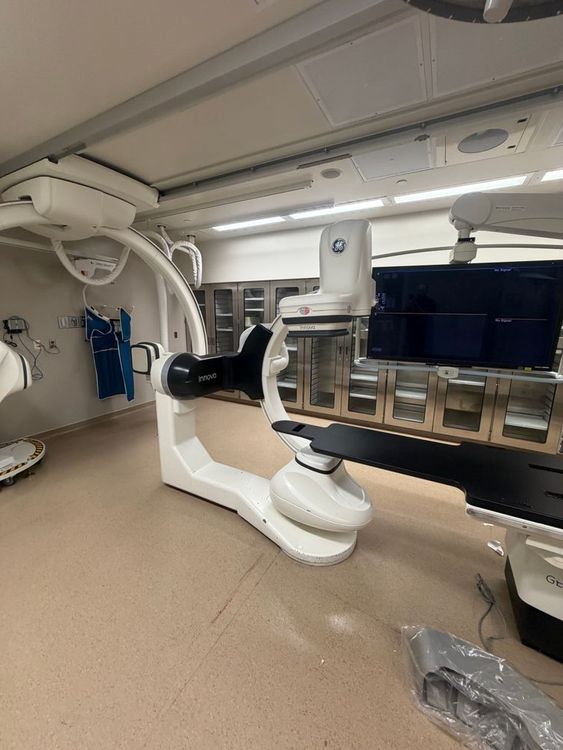

GE Innova IGS 620 Biplane

Cardiovascular Biplane System
Completely Digital Imaging Chain
(2) 21cm Digital Flat Panel Detector with 20 x 20cm Active Area Field of View
GE Exclusive LC Positioner and LP Ceiling Positioner
3 Axis Isocentric Positioner with Floor Mounted L-Arm and offset C-arm
Provides Maximum Positioning Flexibility and Patient Access
(2) 100 kW High Frequency Generators with Grid Pulsed Fluoroscopy Capabilities
Issue with Lateral Generator
(2) GE Performix 160A X-Ray tubes – Both Original
(2) Innova Cardiac Collimators
OMEGA V Motorized Table
Weight Limit up to 204kgs/450lbs
(2) Coolix 4000 Closed Loop Re-Circulation Tube Cooling Systems
(2) Thermo-Con Detector Conditioners
Overhead Monitor Suspension With Large Format Monitor
Innova IQ 20 KVA Fluoro UPS
GE Smart Box and Table Side System Control
Innova TouchScreen Unit
Standard Innova IGS User Interface Package
DL9XB / RTAC7-2
Capella Software

Enabled Software Options:
Cardiac & Dynamic: On
Innova Central Touch Screen: On
InRoom Browser, Fluoro Store, Patient Contouring,
Stenosis Analysis, Left Ventricle Analysis, Worklist,
Storage Commitment, DSA, Innova Chase,
StentViz, InRoom SA
