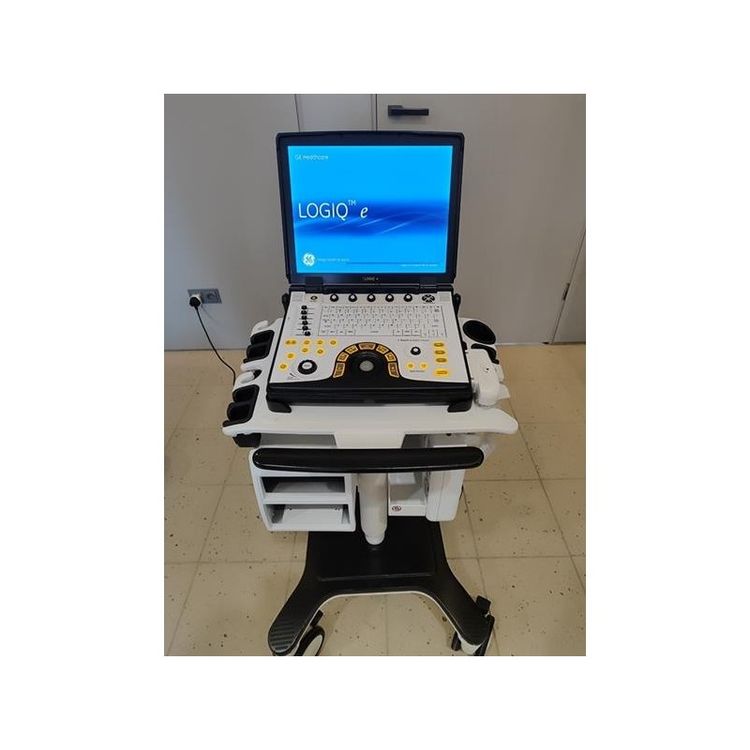

GE Logiq e R8

Screen: 15-inch color LCD with high resolution (1024×768 pixels)
Weight: Approx. 5 kg
Dimensions: Height: 6.1 cm; Width: 34 cm; Depth: 28.7 cm
Power supply: 100–240 V AC, 50/60 Hz, max. 130 VA with peripherals
Battery: Built-in, up to 50 minutes of operating time

Imaging Modes and Features
Scan Modes:
B-Mode
M-Mode
Anatomical M-Mode
Color Flow Mode (CFM)
Power Doppler Imaging (PDI)
Pulsed Wave Doppler (PWD)
Continuous Wave Doppler (CWD) – optional

Advanced Features:
Auto Tissue Optimization (ATO)
Auto CFM Optimization (ACO)
Auto Spectrum Optimization (ASO)
Adaptive Color Enhancement (ACE)

CrossXBeam™ – compound imaging
SRI-HD – speckle reduction imaging
Needle Recognition
HD Zoom
Coded Harmonics
Raw Data Processing (TruAccess)
Auto IMT – automatic intima-media thickness measurement
Stress Echo – stress test protocols
Follow-Up Tool – previous exam comparison
Easy 3D – 3D reconstruction
LOGIQ View – panoramic imaging

Calculation Packages and Clinical Applications
Clinical Applications:
Abdominal
Cardiology
Gynecology
Obstetrics
Musculoskeletal
Vascular
Urology
Small parts and superficial structures
Pediatrics and neonatology

Calculation Packages:
Vascular calculations
Cardiac calculations
Obstetric calculations and tables
Fetal growth tracking
Multiple pregnancy calculations
Hip dysplasia measurements
Gynecological calculations
Urological calculations
Renal measurements

Connectivity and Peripherals
Input/Output Ports:
SVGA
USB (for footswitch, DVD-RW, video printer)
DC power input

Connectivity:
Wireless LAN (802.11a/b/g)
DICOM 3.0 – PACS integration

Peripherals:
External DVD-RW drive
Optional thermal printers (black-and-white and color)
USB storage support

Compatible Probes (Examples)
C1-5-RS: Convex probe (2.0–5.0 MHz)
E8C-RS: Micro-convex probe (4.0–11.0 MHz)
12L-RS: Linear probe (4.2–13.0 MHz)
3Sc-RS: Phased-array sector probe (1.7–4.0 MHz)
L10-22-RS: High-frequency linear probe (10.0–22.0 MHz)
