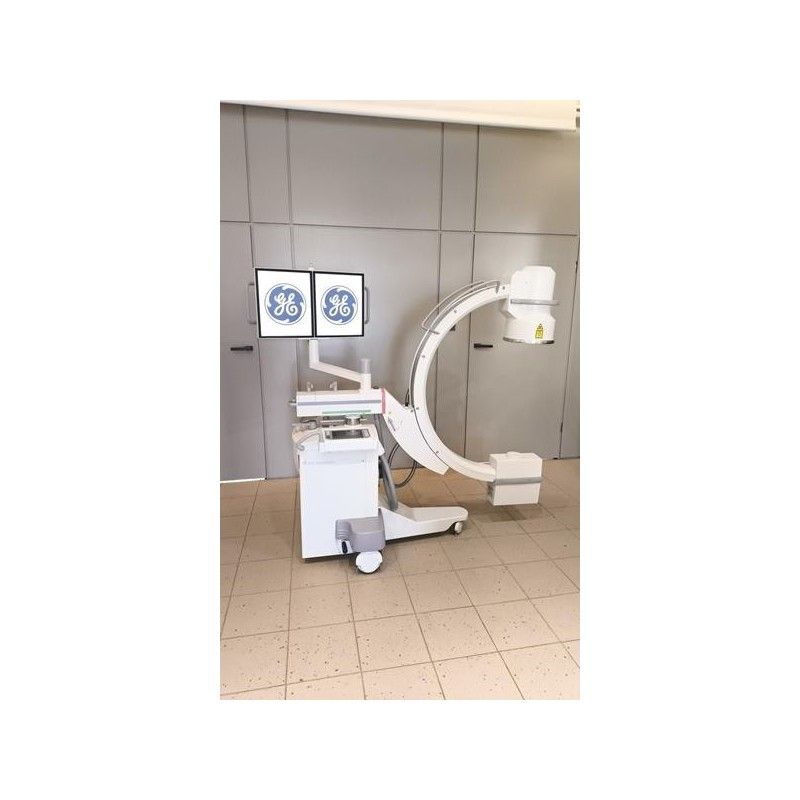

GE, OEC 7900 Fluorostar Compact

X-Ray & Generator Specifications
Generator Type: 2.5 kW High-frequency generator (20 kHz)
kVp Range: 36 – 110 kVp
Continuous Fluoro mA Range: 0.2 – 8.0 mA
Radiography Mode: Up to 20 mA (110 kVp for max 4 seconds)
Focal Spots: 0.5 mm (Fluoroscopy) / 1.5 mm (Radiography)
X-Ray Tube Heat Capacity: 953,000 HU (Housing cooling rate: 15,000 HU/min)
Pulse Rates: 1, 2, 4, 8, and 25 frames per second (fps) for dose reduction

C-Arm Mechanical Movements
Orbital Motion: 120∘ (with 30∘ overscan)
Wig Wag: ±10∘
Free Space: 760 mm (30 inches)
SID (Source to Image Distance): 980 mm (38 inches)
