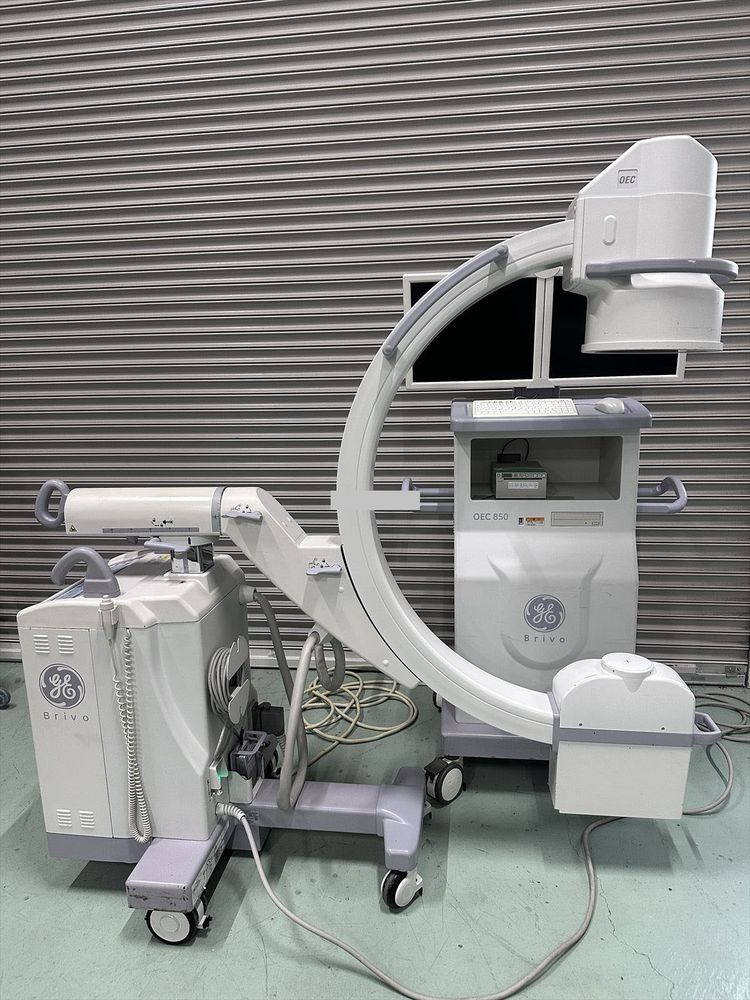

GE OEC-850

Core System Specifications
Imaging Chain: Smart Definition Image Chain with 1 k × 1 k
high-resolution technology.
Image Intensifier: Tri-mode 9"/6"/4.5" (23cm / 15cm / 11cm) Image Intensifier.
X-Ray Tube: Stationary anode X-ray tube with low-dose capabilities.
Generator: High-frequency 40 kHz generator.
Fluoroscopy Modes: Continuous and pulsed fluoro.
Focal Spot: 0.6 mm.

Mechanical Movement & Positioning
Orbital Rotation: 120°.
Lateral Rotation: 410°.
Wig / Wag: 25°.
Free Space: 79 cm.
Dimensions (C-arm): 181 × 76 × 175 cm.
Weight: Approximately 245 kg.

Monitor & Workstation
Displays: Dual high-resolution 19-inch medical-grade monitors
with wide viewing angles.
Storage: Internal storage capacity of up to 80,000 images.
Connectivity: DICOM-ready, featuring CD/DVD and USB drive ports
for easy export and transfer.
Power: Equipped with an Uninterruptible Power Supply (UPS)
to protect patient data and avoid system data loss
