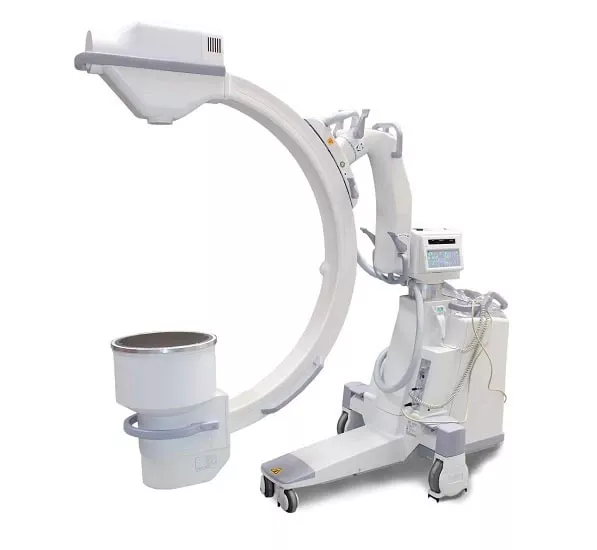

GE OEC 9800

Generator Power: 15 kW.
kVp Range: 40–120 kVp.
Radiographic Mode: Up to 75 mA; mAs range up to 300.
Fluoroscopy Modes:
Normal: 0.2–10 mA.
HLF (High Level Fluoro): Up to 20 mA.
Digital Cine Pulse: Up to 150 mA at 15 pulses per second (60 Hz).

X-Ray Tube Specifications
The system features a rotating anode X-ray tube with dual focal spots.
Focal Spots: 0.3 mm and 0.6 mm.
Anode Heat Capacity: 300,000 Heat Units (HU).
Anode Cooling Rate: 70,000 HU/min (standard) or up to 85,000 HU/min (motorized/cardiac units).
Housing Heat Capacity: 1,600,000 HU.
