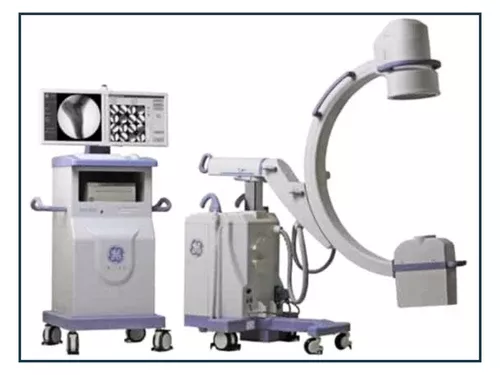

GE OEC Fluorostar 7900 C-Arm

The improved OEC Fluorostar is the most lightweight and
agile full-sized OEC C-arm ever developed.
However, don’t underestimate the power and versatility of
this truly compact C-arm.
Providing beautiful image quality in applications from
basic orthopedic to vascular, the OEC Fluorostar can
be moved and positioned quickly in most any type of
procedure room.

Specifications of OEC Fluorostar 7900 C-Arm:
General
Brand: GE
Model: OEC Fluorostar 7900
Category: X-Ray Equipment
Weight: Compact 285 kg (629 lbs)
Dimensions: Mainframe - 163 x 171 x 79 (cm) (LxHxW)

Dimensions of C-arm:
SID: 98 cm (38 in)
Free space in arc: 76 cm (30 in)
Depth in arc: 66 cm (26 in)
Orbital rotation: 120° (90° underscan / 30° overscan)
Lateral rotation: 450° (+225°/-225°)
Lateral height: 106 cm (42 in)
Wig/wag: 20° (+10°/-10°)
Horizontal travel: 20 cm (8 in)
Vertical travel: 43 cm (17 in)

Dimensions of Monitor Cart:
Height: 167 cm (66 in)
Width: 82 cm (33 in)
Depth: 60 cm (23.6 in)
Weight: 77 kg (170 lbs)
Monitor swivel: 180° (+90°/-90°)
Monitor tilt motion: 9° (+4.5°/-4.5°)

Power
Input power (60 Hz or 50 Hz): 100V/110V/120V @ 13A, 200V/210V/220V/230V/240V @ 8A

Operating Range
Temperature: 10° to 40°C
Humidity: 20%-80% non-condensing

Features:
Image Quality: High-resolution CCD camera, 1k x 1k image processing, 19" flat-screen monitors.
Applications: Suitable for urology, endoscopy, orthopedics,
vascular, neurological, ICU, ER, and surgery centers.
User Interface: Dual touchscreen, color-coded brake controls,
intuitive commands
Connectivity: Wi-Fi, integrated DICOM, USB ports,
storage for up to 15,000 images and 86,000 cine run frames.
Dose Management: Various fluoro modes, laser aimers,
preview collimation, pulsed mode options.
Advanced Imaging: Digital subtraction angiography,
high-performance pulsed mode, cine module with up to 25 fps.
