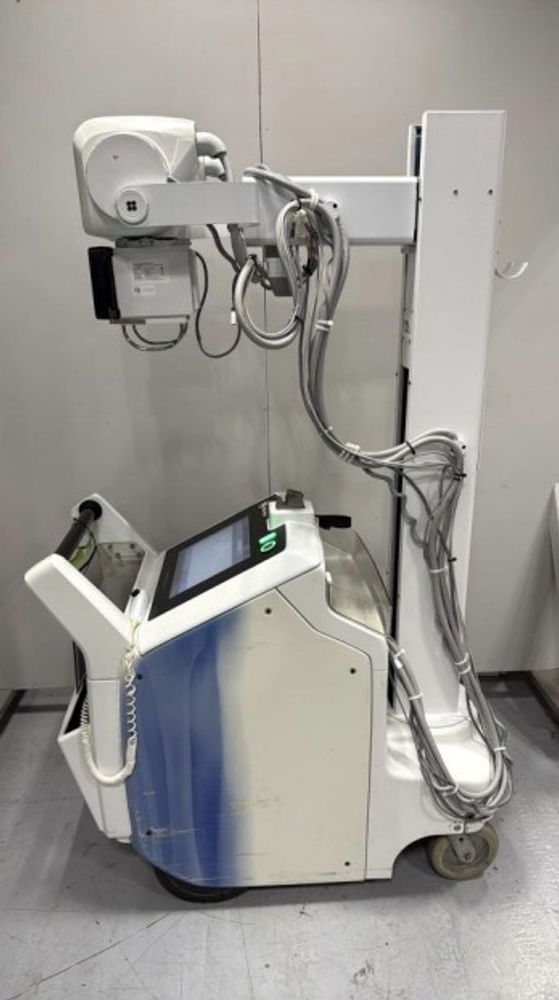

GE Optima XR220 Portable X-ray

Nominal Tube Voltage (Radiographic) 40 ~ 150 kV
Nominal Focal Spot size (IEC 60336): Large Focus: 1.2 mm
Small Focus: 0.6 mm
Anode Rotation Speed (minimal): 3200 min-1
Permanent Filtration: 0.9 mm Al/75 kV IEC60522: 1999
Maximum X-ray Tube Current: Large Focus: 500 mA; Small Focus: 200 mA
Maximum Continuous Heat Dissipation:
Without Air-circulator: 170 W (238 HU/s)
Maximum anode heat units: 140 kHU
Exposure time: 4.0 msec – 6.0 sec
Capable of 100-240 V nominal, 50/60 Hz operation
System battery status display

2013 GE Flashpad
