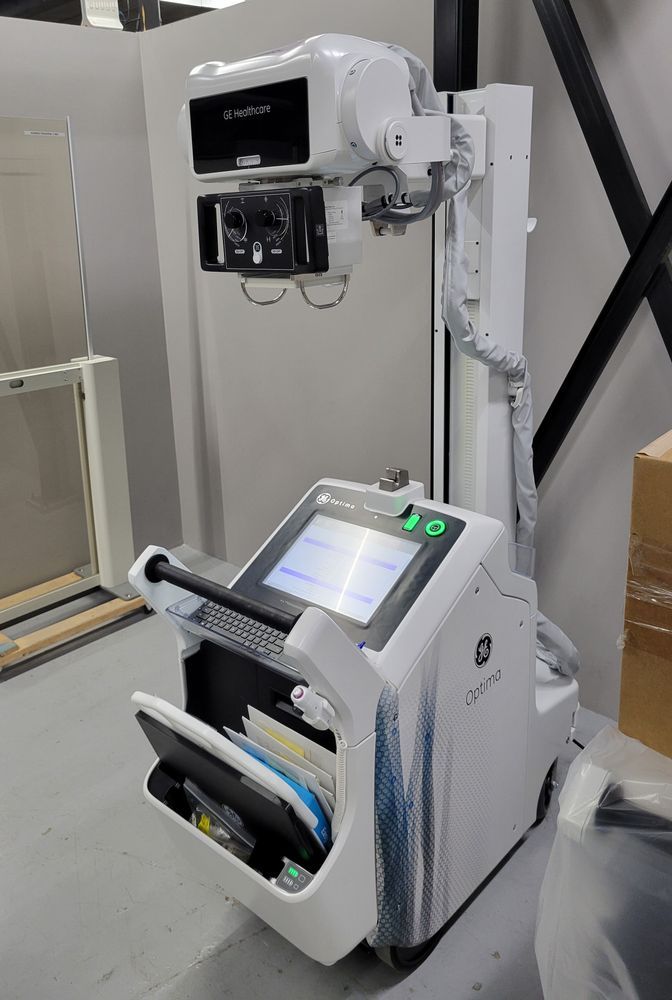

GE Optima XR240 Portable X-ray

Integrated 15 in touch-screen user interface
Storage for more than 5000 uncompressed images
Automated and customizable image transfer to PACS and printers
Automatic charging algorithms allow the system to be recharged at
any charge level, even during exposures enabling 24/7 availability
Optimized Graphical User Interface – Technique, image acquisition
and display tools in a single integrated user interface
Smart Windowing algorithm for automatic adjustment of
brightness/contrast
Nominal Tube Voltage (Radiographic) 40 ~ 150 kV
Nominal Focal Spot size (IEC 60336): Large Focus: 1.2 mm;
Small Focus: 0.6 mm
Anode Rotation Speed (minimal): 3200 min per
Permanent Filtration: 0.9 mm Al/75 kV
Maximum X-ray Tube Current: Large Focus: 500 mA; Small Focus: 200 mA
Maximum anode heat units: 140 kHU
Exposure time: 4.0 msec – 6.0 sec
Capable of 100-240 V nominal, 50/60 Hz operation
30kW generator
Battery operated system can perform up to 50 exams
(100 Xray exposures over approximately 6 hours)
without being plugged into a power outlet
Flashpad Detector
HD Flashpad 14x17 wireless detector
Single panel silicon detector
Pixel pitch 100 microns
