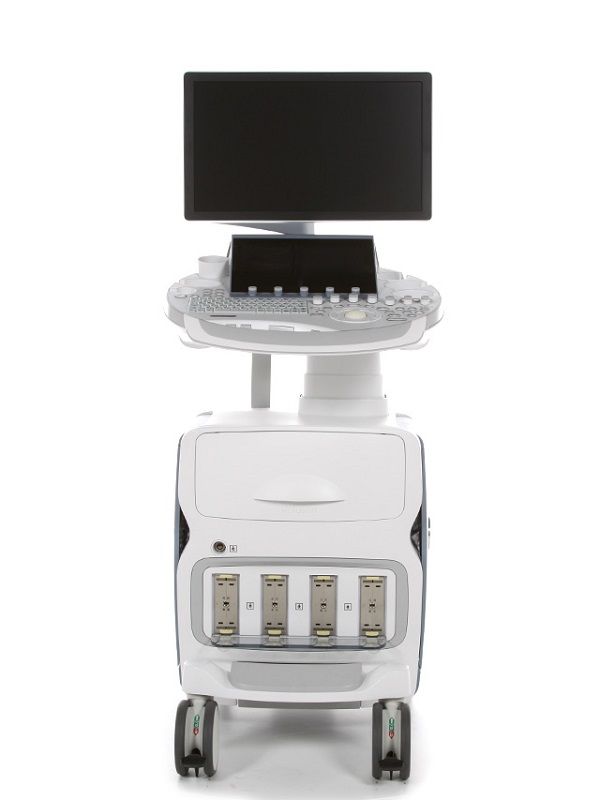

GE Voluson E8

The Voluson E8 delivers:
• Easy to acquire 2D/3D images, excellent color Doppler sensitivity
and sophisticated 3D/4D technologies
• Enhanced exam efficiency and
accuracy through Voluson automation tools
• Secure connectivity to share and collaborate ultrasound findings
with patients and colleagues
• A simplified exam process, from patient scheduling to
exam reporting, with Voluson and ViewPoint™ integration
• The ability to expand your services as your practice needs evolve

From superb imaging to workflow enhancements,
the Voluson E8 provides you with a unique Women’s Health solution
to deliver the high level of imaging performance your practice and
your patients demand.

GREATER DETAIL LESS EFFORT
A busy practice does not have time to manipulate settings to
obtain critical image detail.
With the innovative Radiance System Architecture of the Voluson E8,
you don’t have to – it’s all right there on the screen.

The innovative design and powerful capabilities of
the Radiance System Architecture take the work out of
scanning and let you focus on the image detail for
diagnostic assurance.

• Advanced beamformer design – enhancing contrast resolution by
moving more functions from hardware to software
• High performance CPU – delivering faster processing speeds
and frame rates
• Parallel processing – improving image quality and frame rates

From superb 2D images to our new 3D/4D imaging technologies,
you get excellent image quality with minimal effort and time.

CLARITY WITH EASE
The Voluson E8 provides access to advanced rendering technologies
that bring out extraordinary clinical detail and
workflow enhancements helping simplify volume rendering
– offering an easy, yet essential problem-solving tool.

HDlive™ On the Voluson E8, you have access to suite of
HDlive technologies that bring unprecedented anatomical
realism through advanced skin illuminating and
shadowing techniques to help reveal a unique perspective for
a higher level of diagnostic confidence.

• HDlive Silhouette – Dynamically apply transparency to
rendered structures for a more comprehensive view of
anatomy from a solid surface structure to
developing internal anatomy
• HDlive Studio – Illuminate anatomy and fluid with up to
three independent light sources of variable color, intensity and
direction to focus on even the tiniest of structures
• HDlive Flow – Clearly display vascular structures with
greater dimension – from small vessels to the great arteries
• HDlive Flow Silhouette – Visualize blood vessels from a surface or
targeted transparent view to provide greater insight into
vascular anatomy and surrounding structures

Advanced Volume Contrast Imaging (VCI) with OmniView
• Advanced VCI – Adjusts slice thickness on 3D or 4D images to
help enhance contrast resolution with use of render techniques such
as bone and tissue renderings. Can be applied in
the acquisition plane (VCI-A), static 3D volumes, or OmniView
• OmniView – Obtain any plane from a 3D or 4D volume by
simply drawing a line, curve, poly-line or trace through a structure.
This valuable technology enables views of
even irregularly shaped structures not attainable in 2D imaging

SonoRenderlive Facilitate volume rendering with an
automated placement of the render line for
optimal surface rendering.
SonoRenderlive continuously updates render line placement with
fetal movement during 4D examinations.

DIAGNOSTIC VERSATILITY AND CONFIDENCE
With advanced applications and excellent image quality,
the Voluson E8 supports the health of a woman throughout her life.
From the everyday to the complex, the system gives you information
that can help detect and diagnose problems earlier so you can
intervene sooner.

INTUITIVE DESIGN ENRICHED WORKFLOW
Modern ergonomic design
• 23″ widescreen LED monitor with customizable format,
large clipboard, and standard/XL image formatting
• 12.1″ Touch Panel with multi-touch functionality
• Quick and easy 1-button control panel up/down function for
optimal positioning

Simplified workflow
• Electronic TGC and efficient menu navigation with
swipe technology
• Easy one-touch button workflow – commonly-used scanning modes
are right at your fingertips on the main screen of the touch panel
• Barcode scanner for efficient entry of patient information
• ViewPoint synchronization for seamless data sharing and reporting
• 4 active probe ports with port illumination

Fast, secure data management
• Secure User Management – unique user IDs for
system access and tracking documentation
• Integrated Software Digital Video Recorder (DVR),
including USB recording
• Directly export 3D print files in multiple formats
• Archive, collaborate and share images with
3G or cloud-based connectivity

GAIN EFFICIENCY WITH AUTOMATION
Every minute counts – with Voluson’s easy-to-use automation and
enhanced protocol tools – you can simplify the
patient exam process diminishing wait times and
boosting patient satisfaction.

• Scan Assistant – Flexible, customizable exam protocol tool that
helps increase exam consistency and productivity while
documenting for quality assurance purposes.
Helps guide you through an exam more efficiently aiding in
annotation, measuring, and reporting, transferring data to
an image management system or PACS based system on
your order sequence and output requirements
• SonoBiometry – Performs semi-automated biometry
measurements (BPD, HC, AC, FL and HL) to help reduce keystrokes
• SonoNT™ (Sonography-based Nuchal Translucency) and SonoIT
(Sonography-based Intracranial Translucency) –
Voluson technologies that help provide semi-automatic,
standardized measurements of the nuchal and
intracranial translucencies in the 1st trimester.
Both tools can integrate easily into your workflow.
SonoNT helps avoid the inter- and intra-observer variability that
comes with manual measurements, and helps provide you with
the reproducibility you demand
• SonoVCAD™heart
(Sonography-based Volume Computer Aided Display heart) –
By standardizing image orientation of the fetal heart,
SonoVCADheart helps provide recommended views from
a single heart volume or STIC acquisition • SonoAVC™
(Sonography-based Automated Volume Count) –
Innovative tool helps provide visualization and measurement of
hypoechoic structures within anatomy such as ovarian follicles,
fetal brain or sonohysterograms

PLUG INTO HIGH PROBE PERFORMANCE
The Voluson E8 offers a suite of probe technologies including access
to specialized high frequency probes. With the power of
the Radiance System Architecture, the system delivers exceptional
image quality* and clarity for your routine and most complex cases. The Voluson E8 is compatible with many existing Voluson Expert
Series probes, thereby extending your financial investment.

ADDITIONAL INFORMATION
WEIGHT 131 kg
DIMENSIONS 58 × 93 × 140 cm
MEDICAL SPECIALTY Obstetrics – Gynecology
COLOR Color Flow Mode, eFLOW
DOPPLER PW Color Doppler, Real-time Doppler Auto Trace
DISPLAY TECHNOLOGY LED Monitor
IMAGE QUALITY Resolution FHD 1920 x 1080
SCREEN DIMENSIONS 23″ inches
TOUCH PANEL 12.1
CONNECTIVITY Analog Video Input/Output, DICOM, Ethernet,
HDMI, USB 2.0, USB 3.0, DVD External
PRINT TYPE Ethernet Color Printer, Thermal B/W Printer, USB Color Printer
HEAD PORTS Electronic scanning probes: 4 (3 active, 1 parking)
SYSTEM PORTABILITY Wheeled

COMPATIBLE PROBES
Convex
4C-D
C1-5-D
C2-9-D
C4-8-D

Vaginal
IC5-9-D

Linear
9L-D
11L-D
ML6-15-D

Phased Array
3SP-D
S4-10-D
M5Sc-D

RT3D/4D
RAB6-D
RAB2-5-D
RM6C
eM6C
eM6C G2*
RIC5-9-D
RIC6-12-D
RSP6-16-D
RNA5-9-D

Independent CW Doppler
P2D
P6D
