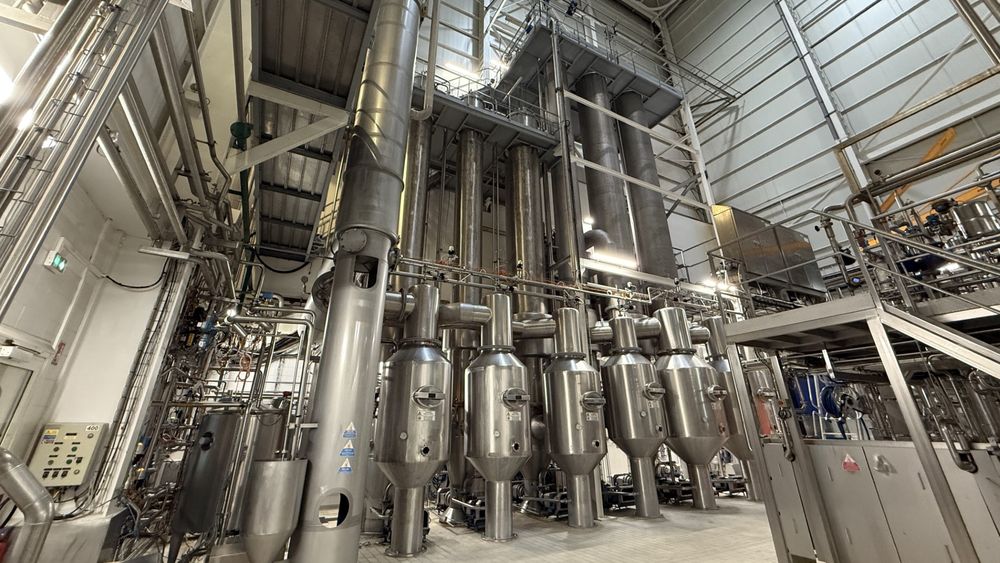

GEA 5x Bi-thermal Effect TVR Evaporator

with Direct Steam Injection (DSI)
Type of Machine Evaporator
Stages 5x Bi-thermal
Compression 2-stage TVR
Product Infant milk (skim / whole milk)
Capacity input 15.500 kg/h to 21.000 kg/h (± 8,5% TS)
Water Evaporation 11.400 kg/h to 13.800 kg/h
Concentrate 4.100 kg/h to 7.200 kg/h (up to 48% TS)
Modification year 2000 (DSI injection)

The evaporator is used to concentrate 4 product categories:

Lean hydrolyzed products pasteurized at 125°C.
Lean or fat fermented products pasteurized at 118°C.
Pre-organic products pasteurized at 118°C.
Compact products pasteurized at 133°C.

Processing rates used by the current dairy:
Skim / whole milk - infeed flow 15.500 kg/h - evaporation 11.400 kg/h - outfeed flow 4.100 kg/h.
Skim / whole milk - infeed flow 17.000 kg/h - evaporation 12.300 kg/h - outfeed flow 4.700 kg/h.
Skim / whole milk - infeed flow 21.000 kg/h - evaporation 13.800 kg/h - outfeed flow 7.200 kg/h.
Cleaning: flow 23.000 kg/h
