GEA Complete Atomizer powder plant
EUROPE (Western and Northern)
with Evaporator and Spray Dryer
Type: Falling film evaporator
Stages: 4-effect
Tube diameter of all stages: 51 mm
Length of the tubes: ± 10 meters
Calandria 01: 164 tubes
Calandria 02: 164 tubes
Calandria 03: 79 tubes
Calandria 04: 79 tubes
Capacity input for whey: 15.000 liter per hour (± 6% TS)
Water evaporation: 13.400 liter per hour
Capacity output for whey: 1.600 liter per hour (± 48% TS)

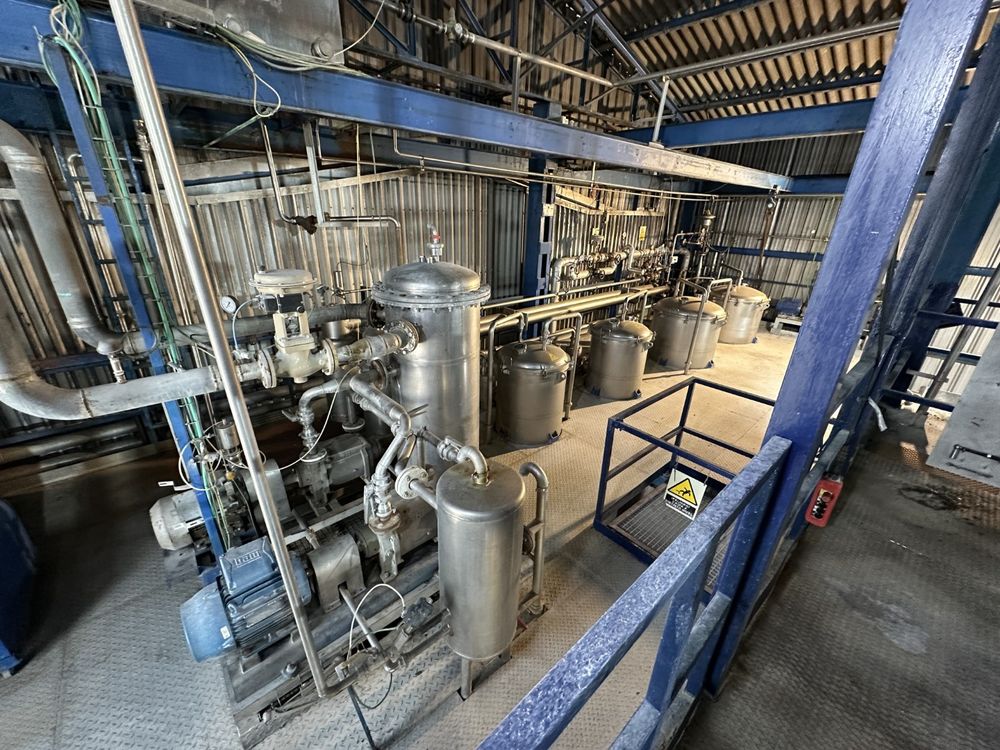

Including infeed tank, product pumps, vacuum pumps, all interconnecting piping / pneumatic valves and controls.
Controls of the evaporator renewed in 2021 with Siemens S7-1200 PLC and Siemens Simatic HMI.
Spray dryer
Manufacturer: GEA Niro Atomizer
Atomizer size: F35
Atomizer type: NIRO L000 -FS S-S
Year: 1988
Capacity output for whey powder: ± 900 kg per hour (WP)
Atomizer Spray Dryer with 2 cyclones.
Including: explosion door, cyclones, cooling towers, all interconnecting piping / valves and the original relay controls.
Hot air Generator
Manufacturer: Babcok Wanson
Model: HTV-N 1200 Vert.
Nominal rating: 1.530 kW
Electrical supply: 400 V - 50 Hz - 4 kW
Gaz Burner: Weishaupt, type WM-G20/3-A Monarch, year 2016
4x Crystallization Tanks
3x 8.000 ltr (#1 2 4)
1x 7.000 ltr (#3)
Tank #1 and 2 with flash warm up and cooling down
Tank #3 and 4 with cooling on the jacket
All with agitator
