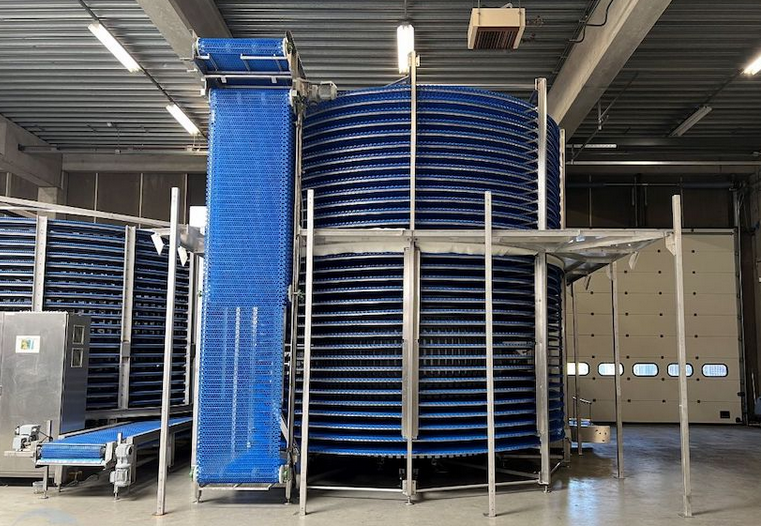

Eurotek, GEA RR36(1.6)33-140

Cooling capacity: 280 kW / 82.35 tons
Refrigerant type: R717 / Ammonia
Voltage: 400 V
Absorbed power: 42 kW
Infeed / outfeed: North/East
Input/output height with floor outside: ±800 mm / 5600 mm
Direction of belt rotation: Counter-clockwise
Type of belt: Plastic, acetal
Net belt width: 914 mm
Tier pitch: 140 mm
Maximum product height: 70 mm (option up to 100 mm)
Number of tiers: 33
Effective belt length per tier: 14.95 m
Total effective belt length: 493 m
Belt surface: 344 m²
Drive system: Direct drum drive, gearboxes renewed in 2016
Evaporator: 1 stainless steel unit
Evaporator fans: 3 high pressure ventilators, 13 kW each
Control box: Stainless steel, original EUROTEK/GEA control system
Optional PLC: Siemens S7 with Simatic touchscreen
Defrost: Water / hot gas
CIP cleaning system: Complete
Floor: Stainless steel, anti-slip with galvanized underfloor
Construction: Completely stainless steel
Dimensions (LxWxH cm): 890 x 550 x 600
Condition: Maintained yearly, 3 months guarantee on main components
