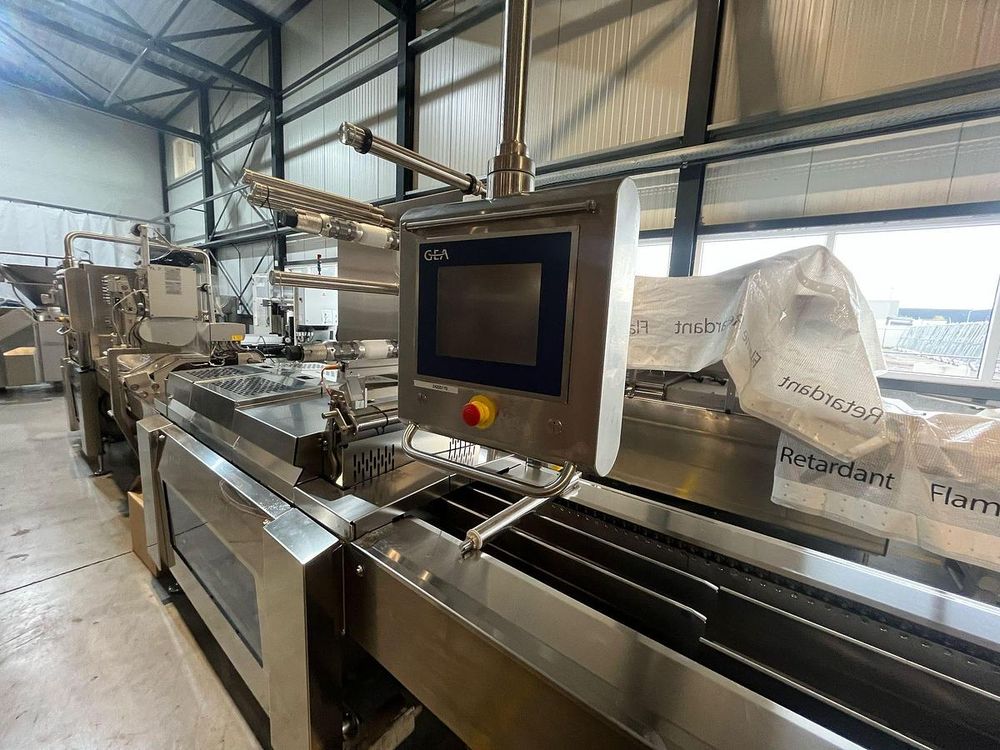

GEA PowerPak RT-0000004033-00

Cycle length min./max.: 380 mm
Width of film: 420 mm
Single roll bottom film roll diameter (max.): 500 mm
Double roll bottom film roll diameter (max.): 500 mm
Diameter of jumbo bottom film roll (max.): 800 mm
Single roll top film roll diameter (max.): 500 mm
Double roll top film roll diameter (max.): 400 mm

* Weight of film roll at 460 mm width (max.): 132 kg
* Weight of film roll at 560 mm width (max.): 160 kg
* Weight of jumbo film roll (max.): 400 kg

Voltage 400 V, 50 Hz, 3 phases (clockwise rotating field), neutral, earth
Dimensions (mm) LxWxH 11045x1314x2213
Empty weight 4000-7000kg
Length of the chain (M) 18.898
Sound pressure level 70.3 dB(A)
Lifting forming and sealing station Max(mm): 150
