GEAM ORCA 500A Single-Head Upward Blade Saw Automatic

Spare Parts Availability
Not specified

Description

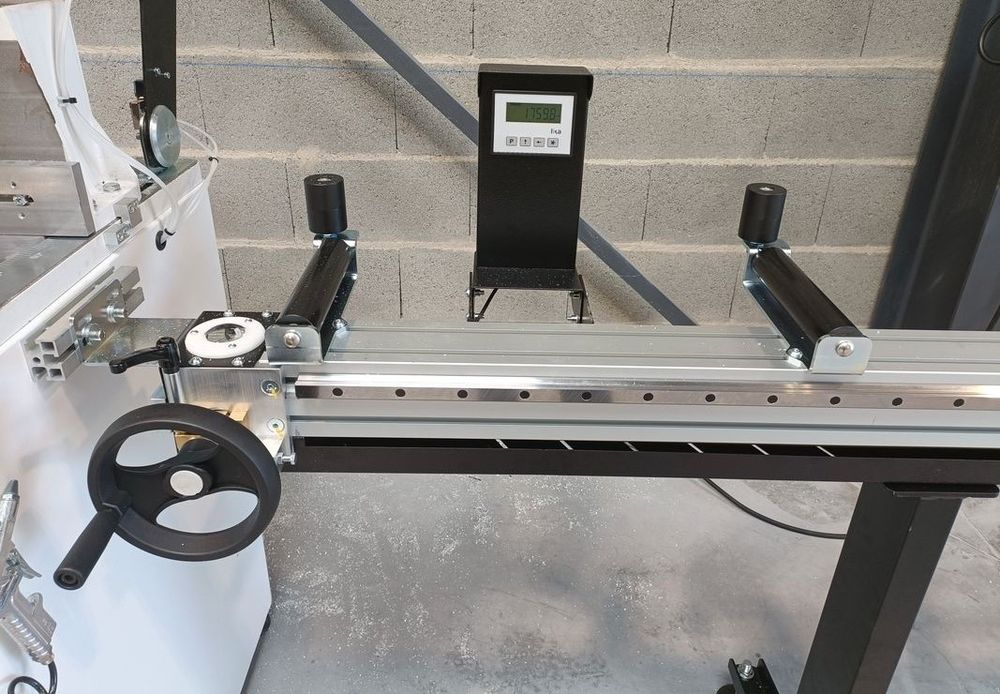

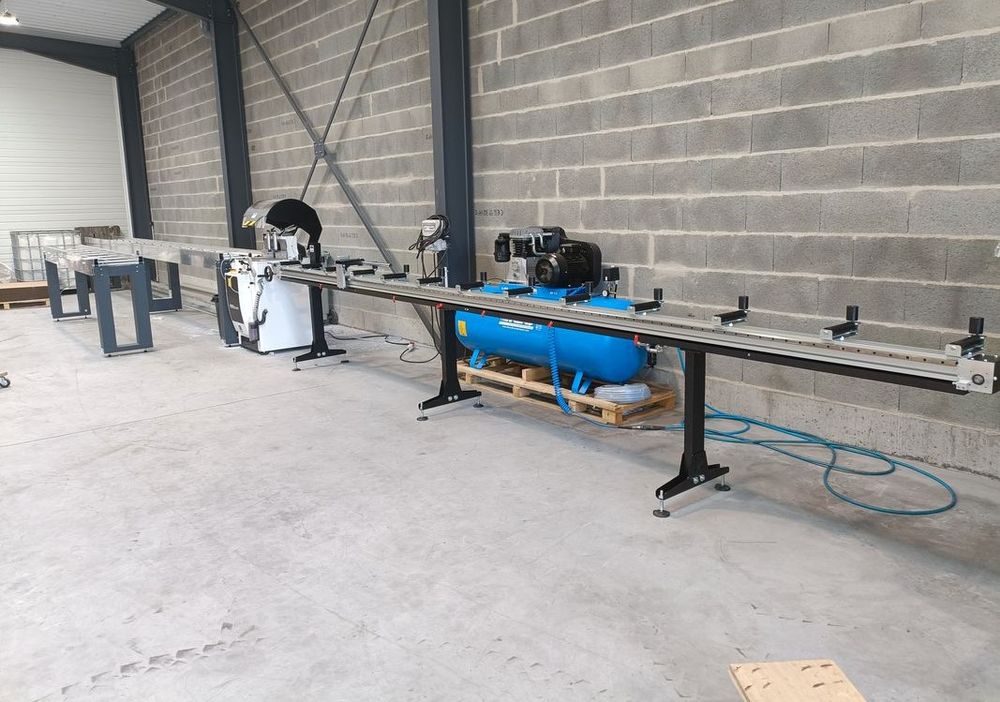

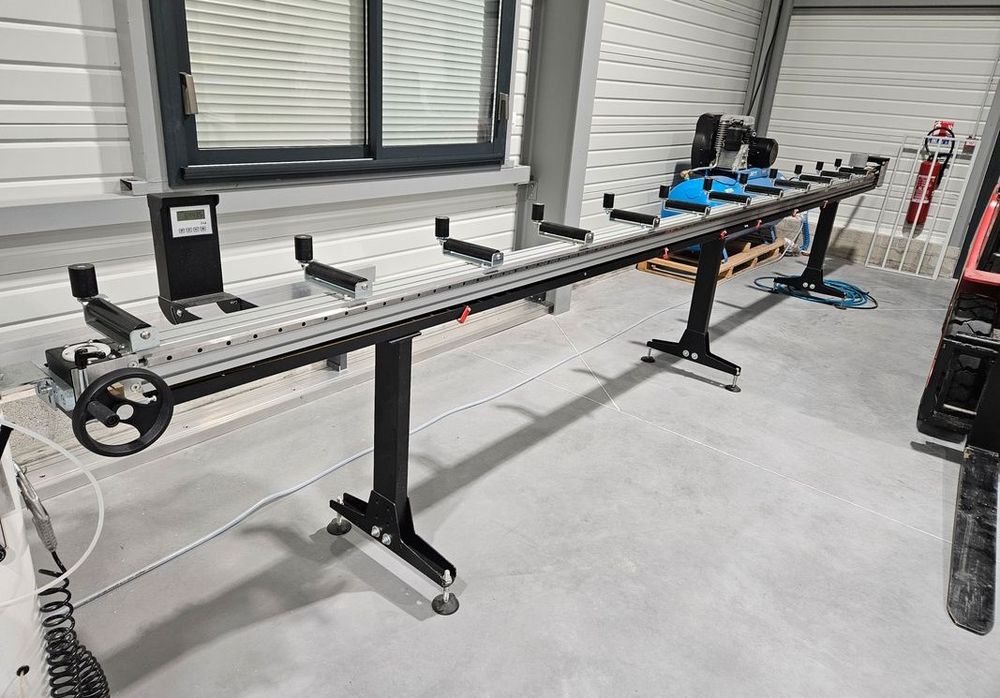

GEAM Evolution single-head saw with a 6-meter digital table. High-performance machine.
For sale because we have invested in the next model up.

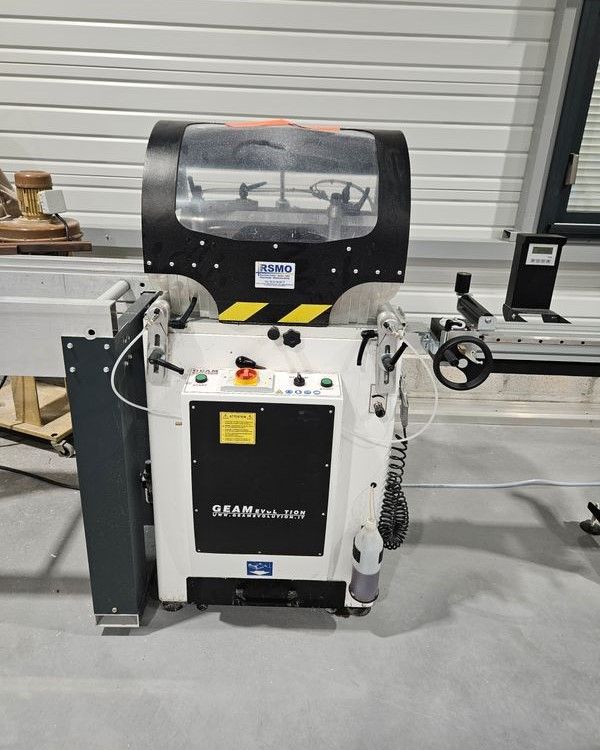

1 - ORCA 500A Saw:
➔ Description
• Upward-facing saw with automatic blade movement
• Adjustable table from -20° to +20° and intermediate cuts
• Stop for angle positioning: +45°/+30°/0°/-30°/-45°
• Blade guard with cover (automatically lowering front and rear).

• Adjustable sliding fixed jaw to increase cutting capacity
• Adjustable pneumatic vertical vises across the entire travel of the worktable
• Horizontal pressure cylinders
• 1.85 kW three-phase motor
• Air blow gun
• 500 mm diameter carbide blade
• Working pressure: 7 bar
• Dimensions: 820 x 935 x 1410 mm
• Weight: 280 kg

Machine purchased and installed in April 2023. Year of manufacture: 2022
Technical documents available upon request.
