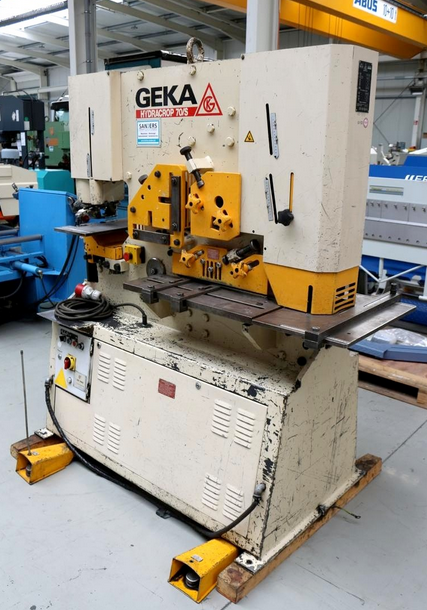

Geka HYDRACROP 70/S 70 t

Punching force: 70 t
Square steel capacity: 45 x 45 mm
Round bar capacity: 45 mm
Angle steel capacity: 150 x 150 x 13 mm
Punching capacity: Ø 27 x 20 mm
Flat material shear capacity: 450 x 15 / 300 x 20 mm
Throat depth: 300 mm
Stroke: 70 mm
Maximum working height: 1095 mm
Total power requirement: 9 kW

Electro-hydraulic profile steel shears
4 work stations
Flat steel shears
Profile steel shears
Hole punch
Notching station
Driven by two hydraulic cylinders
Stepless stroke adjustment
Support table at punching and notching station
Material stripper
Side storage options
2 freely movable foot switches
Operating instructions included

Machine dimensions: 1800 x 1200 x 2000 mm
Weight: 1925 kg
