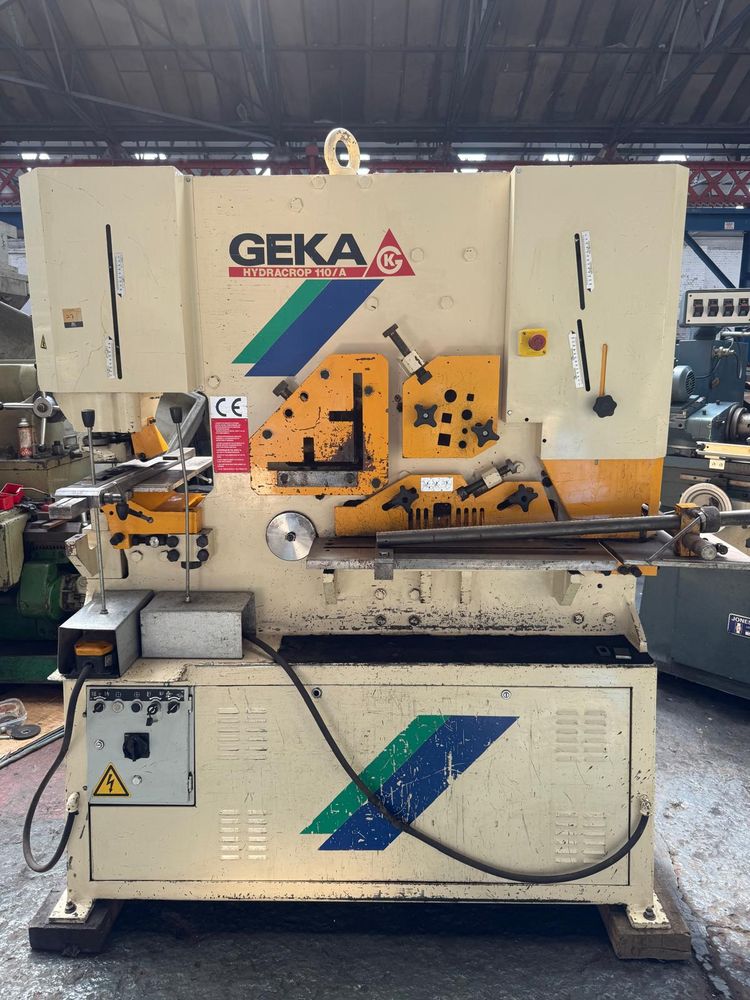

Geka Hydrocrop 110/A 110 metric tons

Geka Hydrocrop 110/A
Year: 2007

Punching capacity: 110 metric tons
Punching diameter/thickness: Ø38 mm × 19 mm
Throat depth: 300 mm
Punch stroke: 76 mm
Flat bar shear capacity: 610 mm × 16 mm
Angle shear capacity (90°): 160 mm × 160 mm × 13 mm
Angle shear capacity (45°): 75 mm × 75 mm × 8 mm
Round bar shear: Ø50 mm
Square bar shear: 50 mm × 50 mm
Notching capacity: 90° × 50 mm × 40 mm × 13 mm
Work height (punch table): Approx. 1000 mm
Number of workstations: 5
Dual operator: Yes – two foot pedals and cylinders
Motor power: 7.5 kW
Weight: Approx. 3500 kg
Dimensions: Approx. 2000 × 1200 × 2100 mm
